Homemade disc sander.

12" Disc sander – 1

Collecting and preparing the parts to make a disc sander.

IMG_20180910_160811
From stock I need to cut the end off this 2400 x 300 Melamine board.

IMG_20180910_160828
Moving the 12″ mitre saw so the long board can stick out the door.

IMG_20180910_160840
Measure and mark 300mm off the end.

IMG_20180910_160856
Now over to the mitre saw.

IMG_20180910_161025
The Ozito 12″ sliding mitre saw has the capacity to cut across 12″ or 300mm

IMG_20180910_161154
With that done we can return the Melamine to stock.

IMG_20180910_161310
Boards stored behind the ‘entertainment unit’ that I picked up off someone’s hard rubbish

IMG_20180910_163339
This disc will bolt onto the grinder motor shaft.

IMG_20180910_163602
The sander disc will be screwed to the motor disc. Back soon…

Disc Sander damage

To lazy to setup a small stepladder to get something down from the mezzanine floor of the garage workshop I stood on the edge of the table that has my 9″ band saw and homemade disc sander on it, then stepped onto the top of the sander itself…and caved in the top!

100_4531
Above: This is the damaged sander top, it’s sitting on a new one that I have already cut and fitted to the disc sander.

100_4534
Above: The top is 30 cm deep and to cut a new piece I automatically went to setup the table saw but wait…I now have a sliding mitre saw with 30cm cutting capacity – use that!

Disc sander project

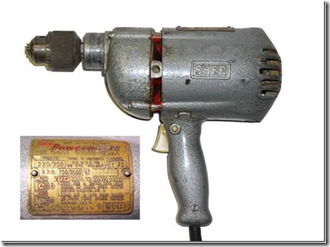

Sher drill
While cleaning up the tool cupboard came across some vintage stuff from the early sixties! I remember now…my dad and I caught the train into the city to visit McEwan’s to purchase a complete Sher ShopMate work shop system – the ultimate at that time. I still have the Sher PowerMatic drill (later on became Skill Sher).

Note the mounting collar at the front of the drill. There is also a blind hole at the back on the same centre line to support the drill in the ShopMate stand.
