OLIVER & RILEY batman lights – part 2
Day: July 5, 2020
PHOENIX – part 5 final
PHOENIX – part 5 final
We are done and I’ll post him to Clifton Hill in the next couple of days.
HOENIX – part 4
PHOENIX – part 4
Modified the controller in the usual way and installed the LED strip.
Serengeti Lion – part 4
Serengeti Lion – part 4
Finished and collected yesterday – and paid for.
PHOENIX USB batman light – part 5

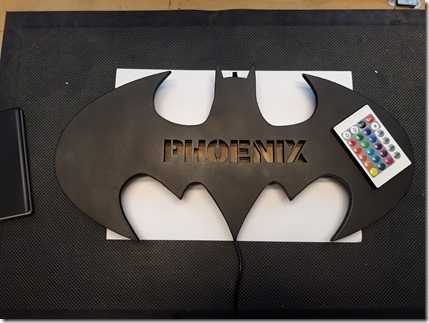

Finished this guy and ran him in Demo mode for a while to test that everything is working OK.
PHOENIX USB batman light – part 4
Modified the controller in the usual way and installed the LED strip.
This batman light is using USB LED strip lights which is a easier build process compared to the battery version although we still need to make modifications to controller and power wiring to fit everything into the confined space – his head.

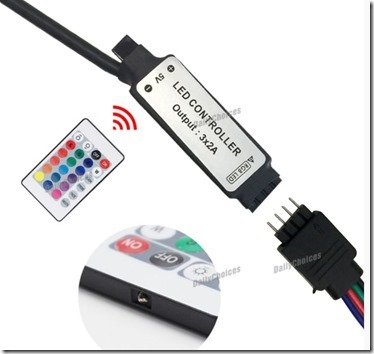

Typical IR controller; at one end the IR diode and power cable with RGB cable connection at the other end – both need to be modified. The IR diode mounts in the centre of his head so the power cable needs to be modified to fold back onto the controller. At the RGB connector end there is far too much cable length between the end of the RGB cable and the 4 pin connector so most of that has to cut out and re-terminated.
