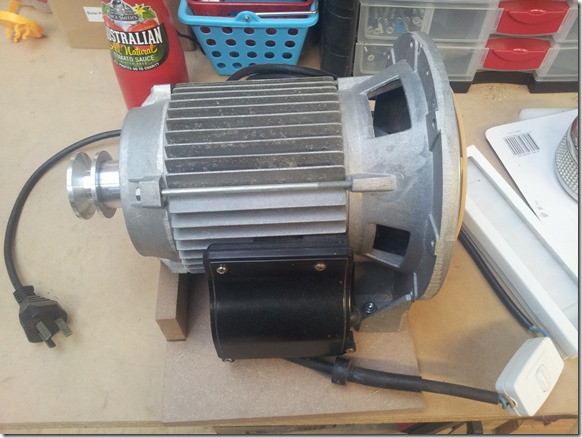

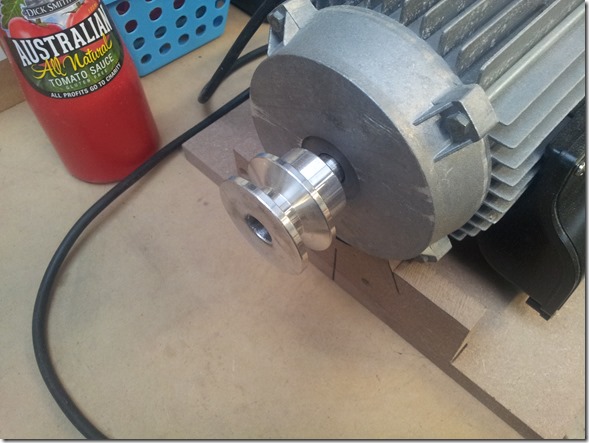

This is the motor I will be using, a 1200W unit from a ALDI Gardenline water pump. Last time I made my our wooden pulley which never ran as true as I would have liked so this time I bought a $20 pulley from Conon Motors in Glen Waverley.
I would love to buy one of their motors as well but a 1.5HP 4 pole is around $200 dollars.
Back to cut discs 3 & 4 which will make the second wheel
Same thing again, work slowly around
Now we can move along and make two wheels.
That was put out for hard waste collection in the Rowville area somehow found it’s way into the back of my KIA Pregio van and into the Meadowbrook Mansion workshop
Perfect for the just completed 8” bandsaw.
Just finished the 8” bandsaw and decided to build another 14″ bandsaw to replace the one lost in the shed fire that took around 7 months to build. I will be using the 8″ bandsaw (see previous posts) to build this one. To get started went looking for and found enough Melamine particleboard (16mm) to cut 4 x 14″ discs which will make 2 wheels each 32mm wide – more on this later.
We need to cut 4 of these on the mini band saw so start by trimming them on the table saw.
This in number four…
…here are the other three.

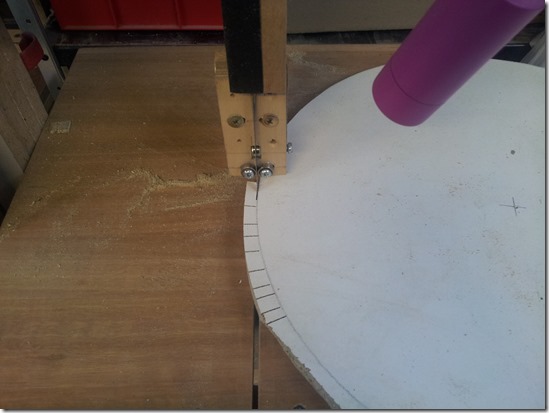

Need to make relief cuts around the circumference first, then cut carefully to the line…
…like this. Lots of patience is required.
Moving along.
Two done and time for a rest and let the saw motor cool down.
We need to cut 4 of these on the mini band saw so start by trimming them on the table saw.
