In this session we are wiring the reversing camera and then in the drivers footwell connecting everything to power and also mounting and connecting the camera monitor screen.

Another afternoon of contortionist pain and suffering.

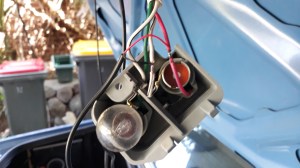

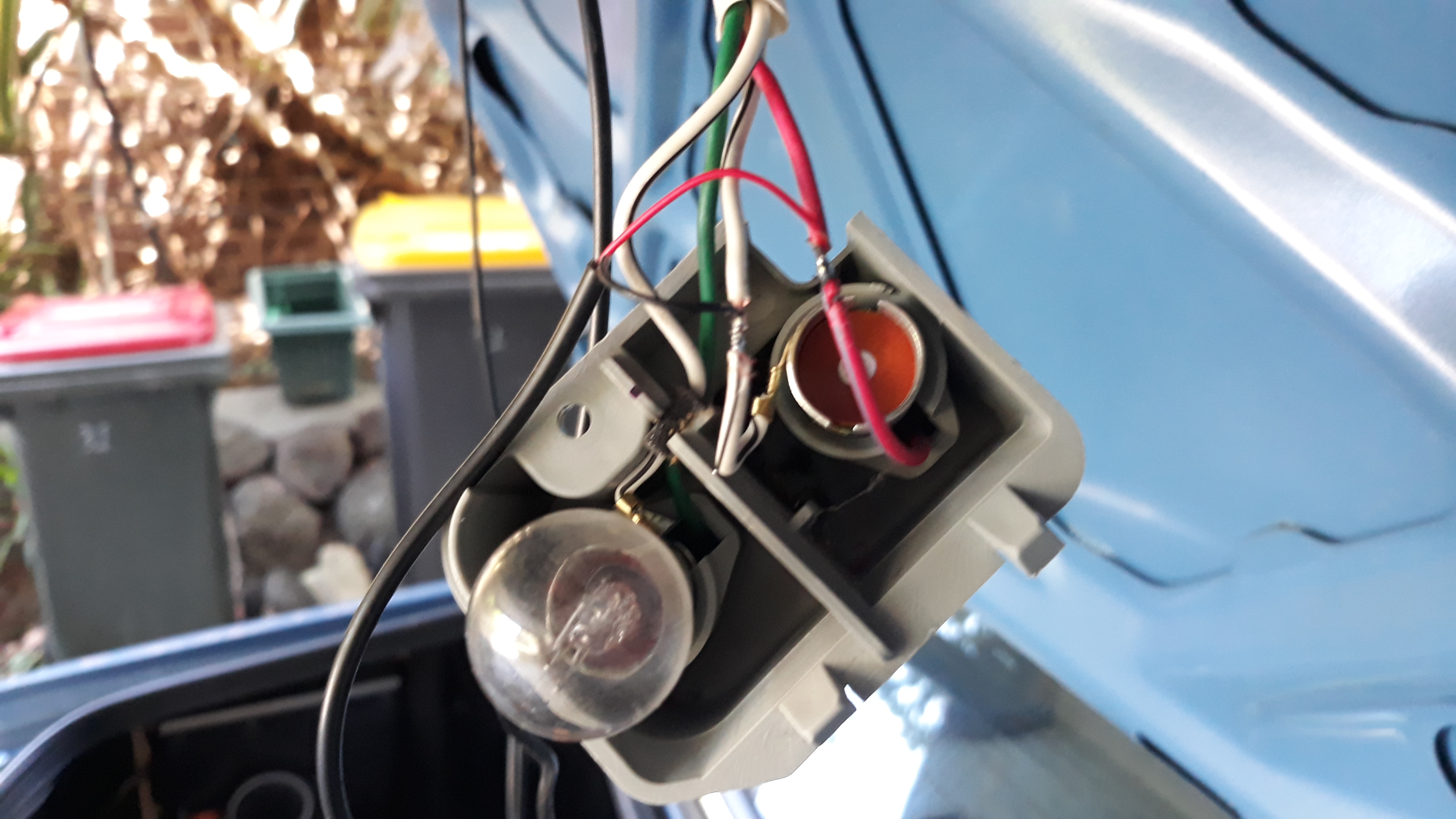

Spliced the reverse lamp wires, twisted on the camera power wires and soldered both of them.

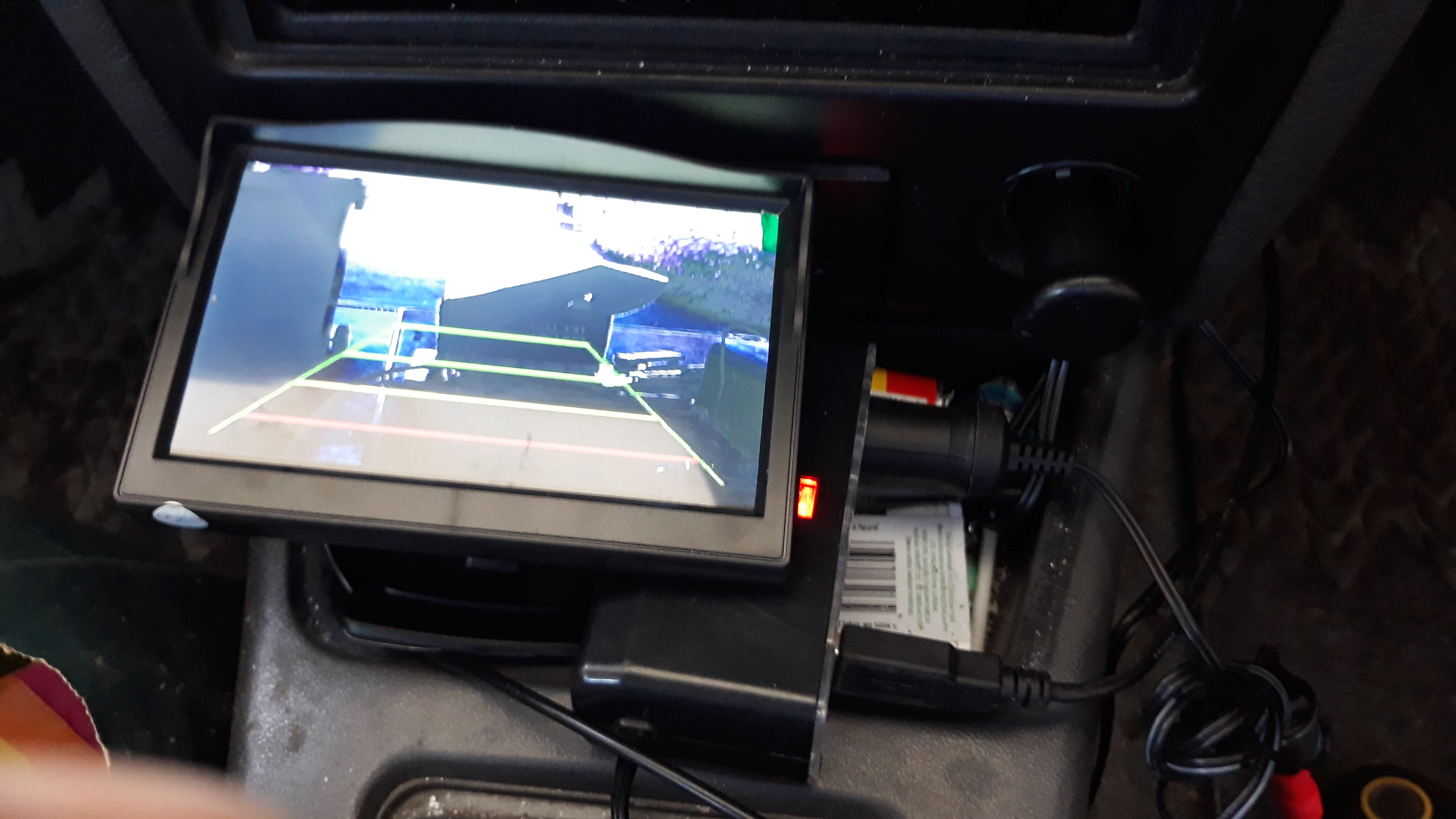

Before we go any further make sure it’s working.

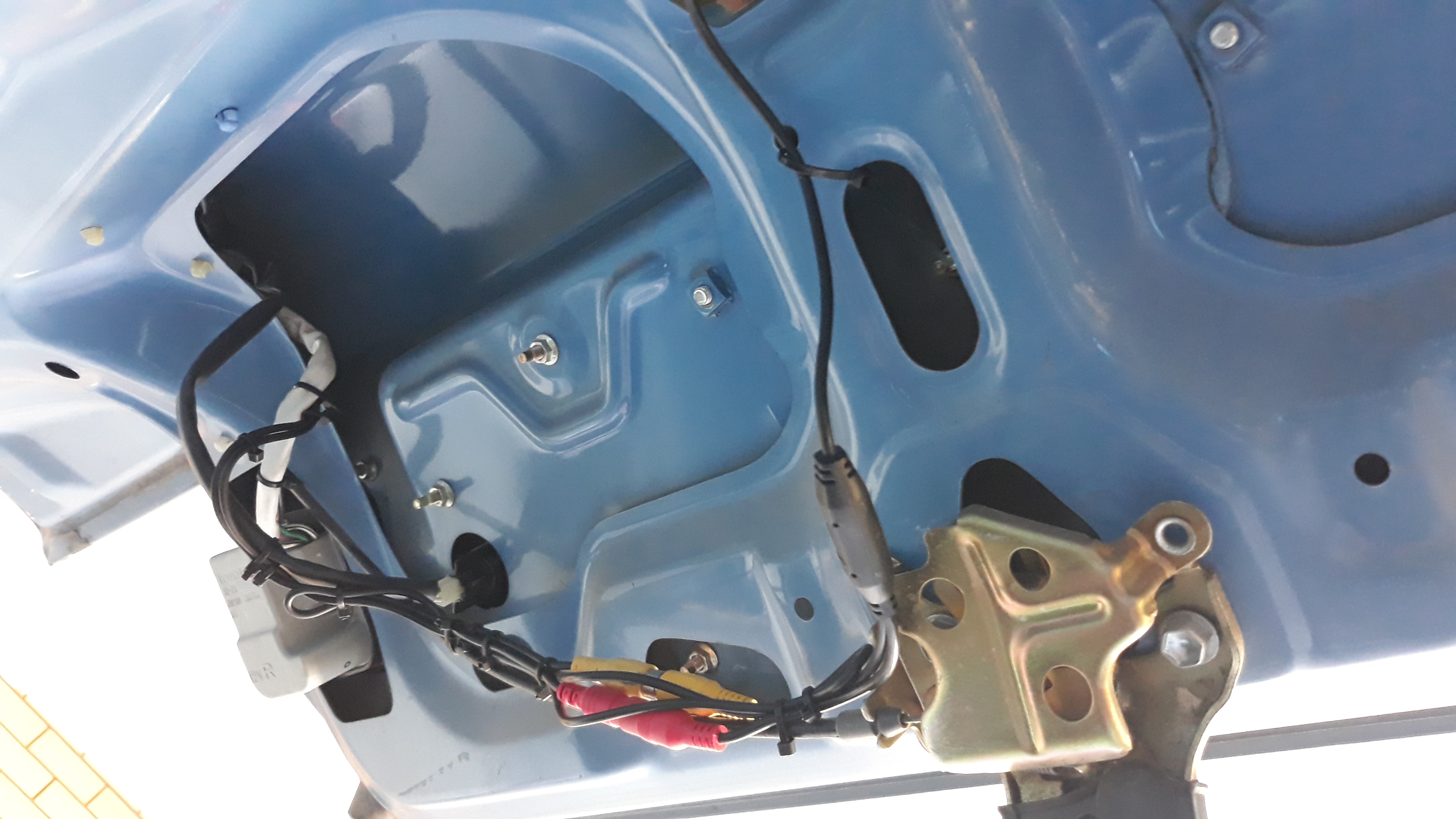

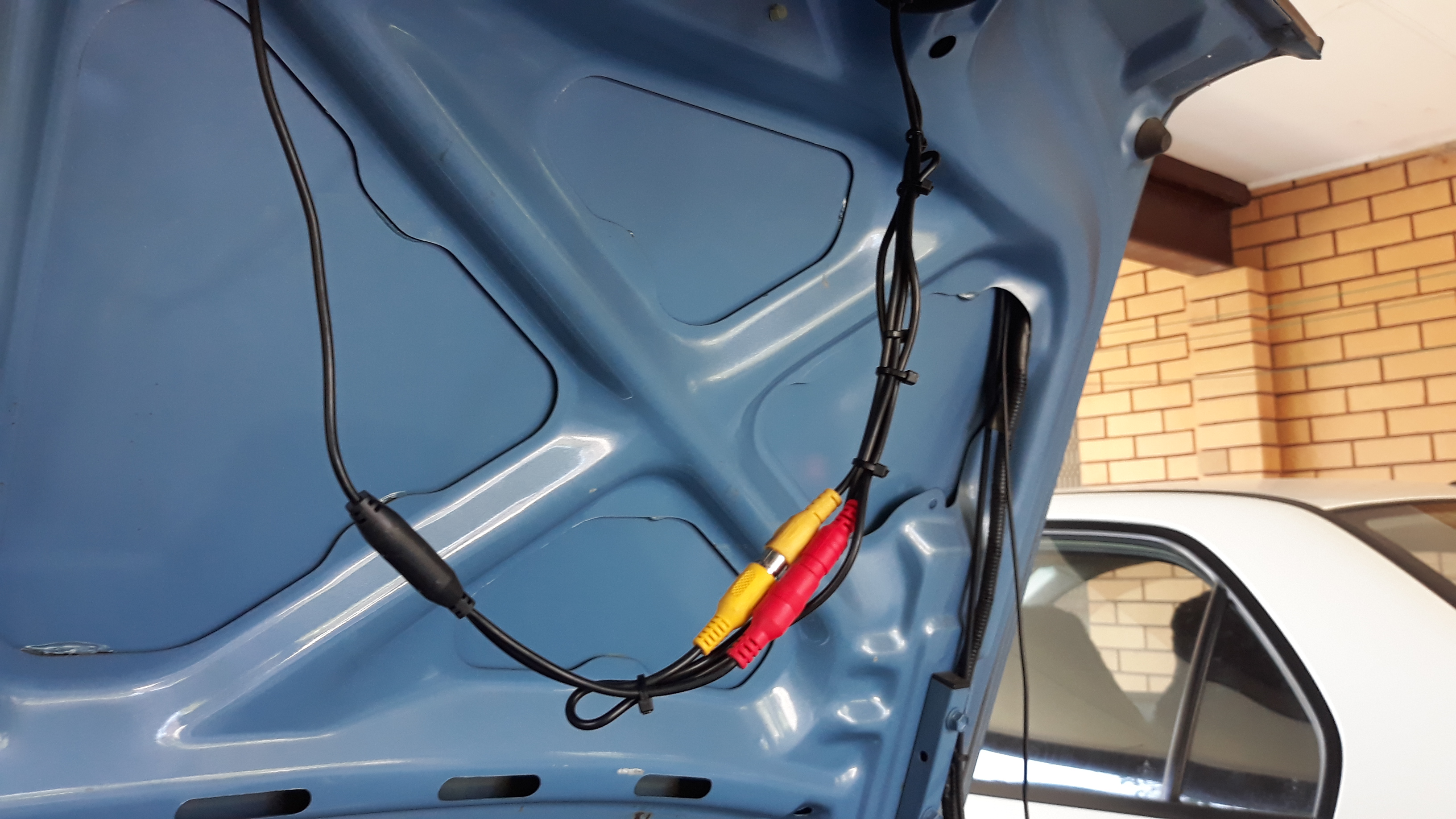

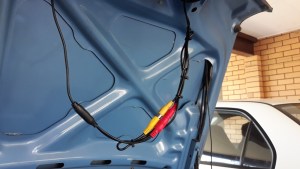

Back to the boot to cable tie everything.

We are done here – phew.

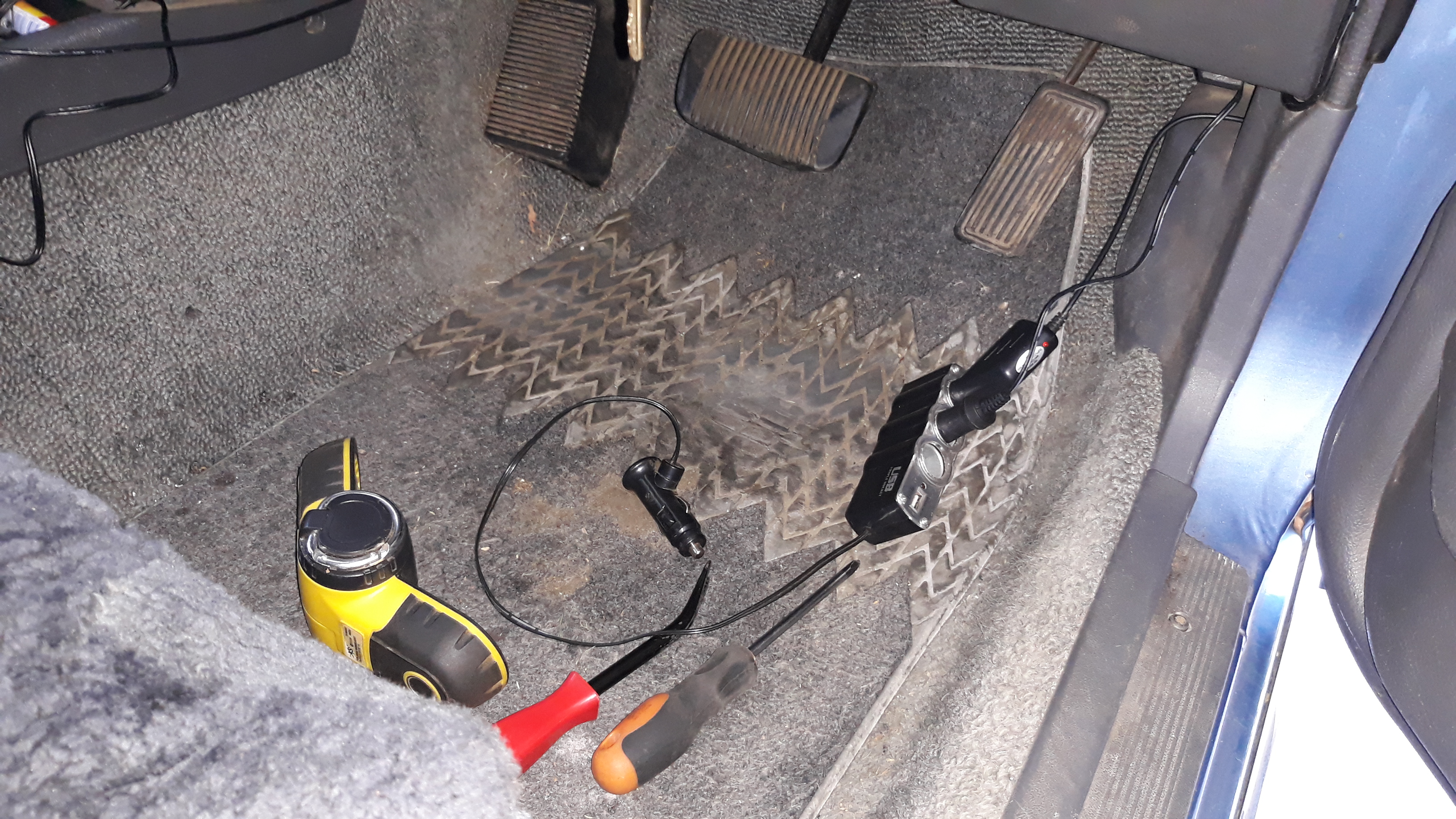

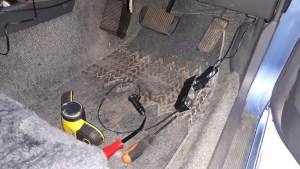

Where’s my keeling pad.

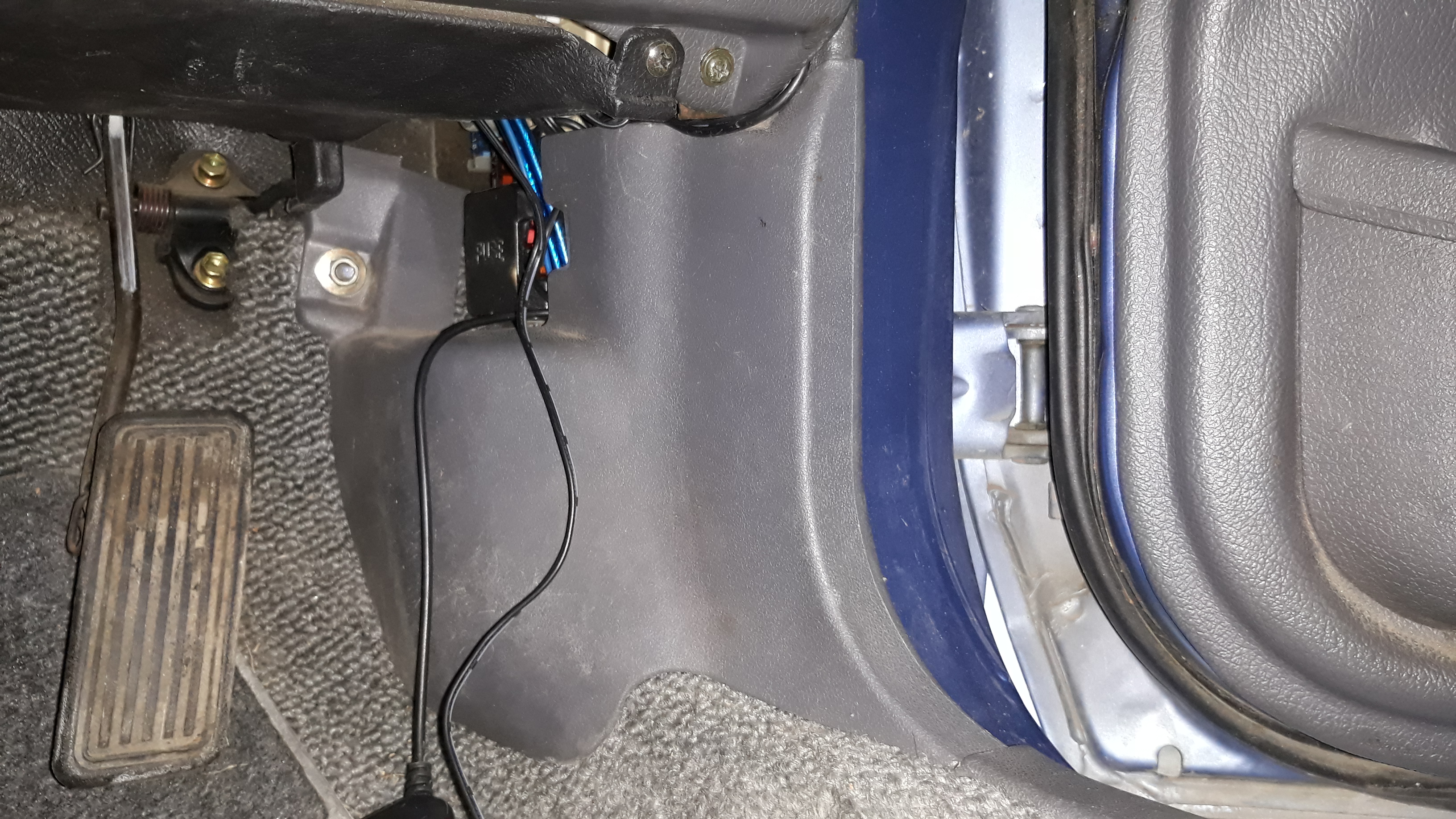

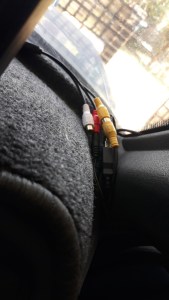

Route all cables behind. the kick panel.

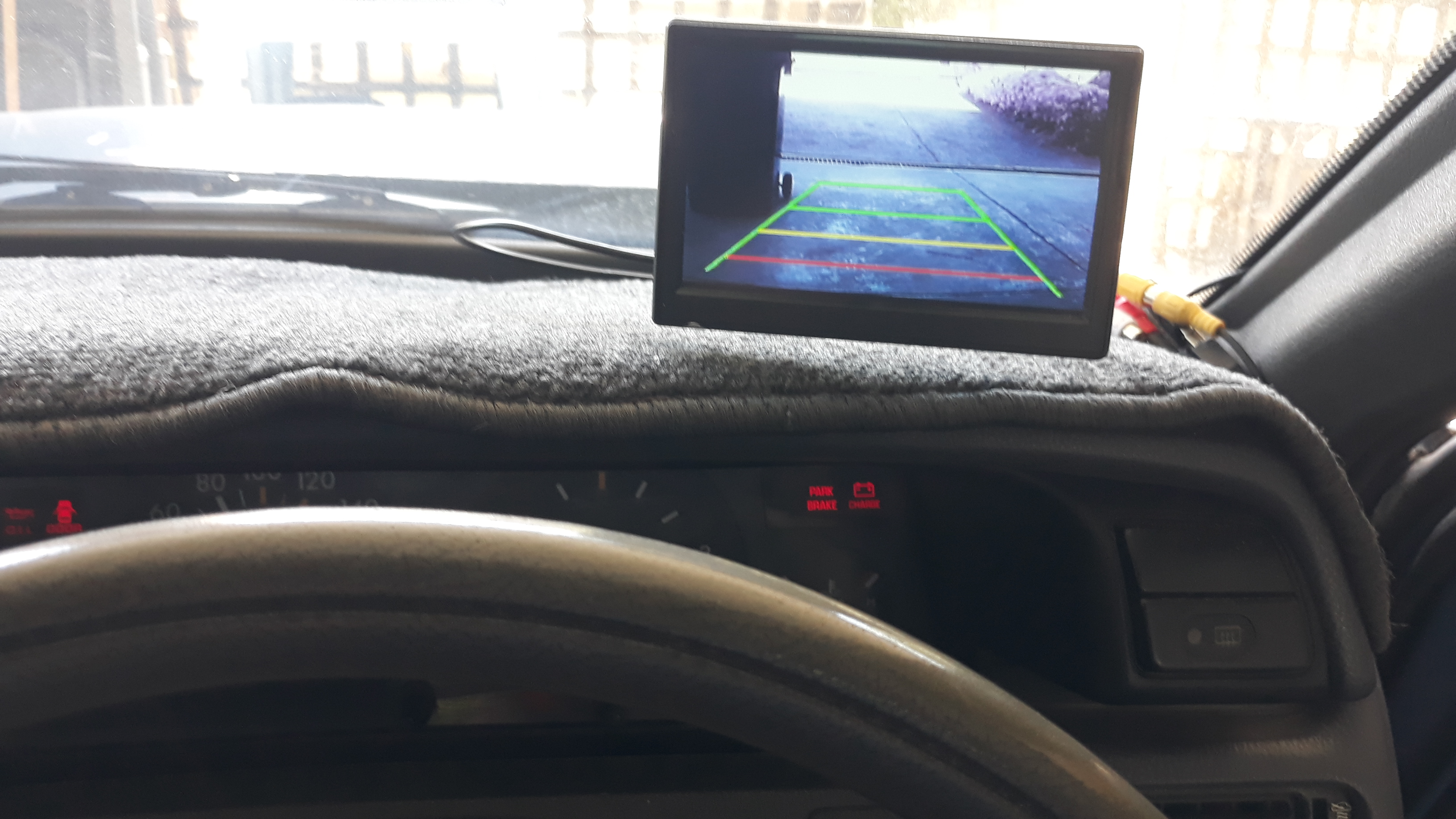

And up to the dash.

We are done with this job.

Next up… mount and connect the rear parcel shelf dashcam camera (ShelfCam).
