14” Bandsaw – Crank handle 2

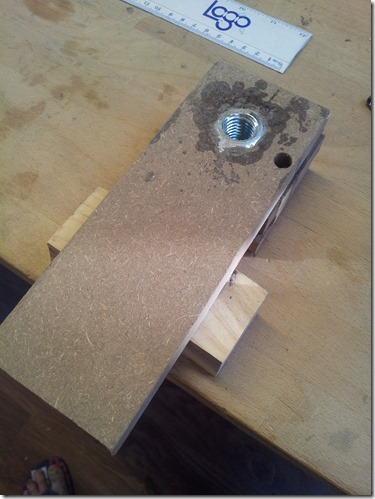

20180118_194344

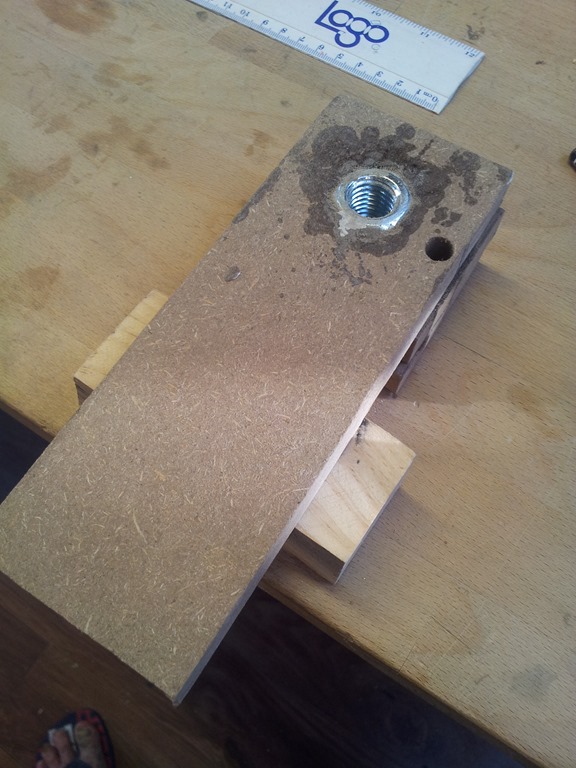

With the epoxy cured well enough to continue we can mark out the handle profile.

20180118_195307

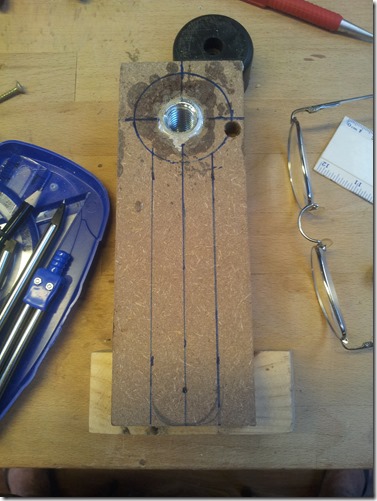

Nothing in mind about a specific style, this looks OK.

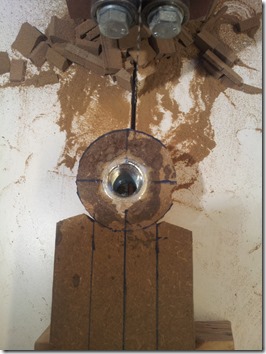

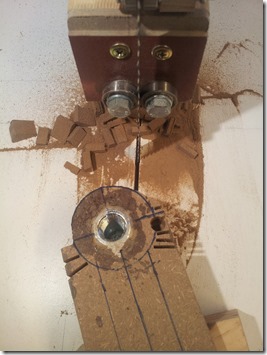

20180118_20042920180118_200557

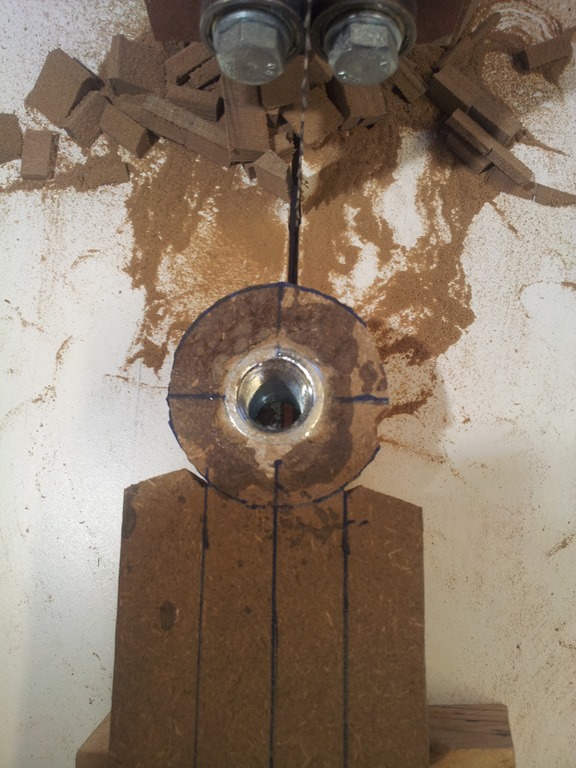

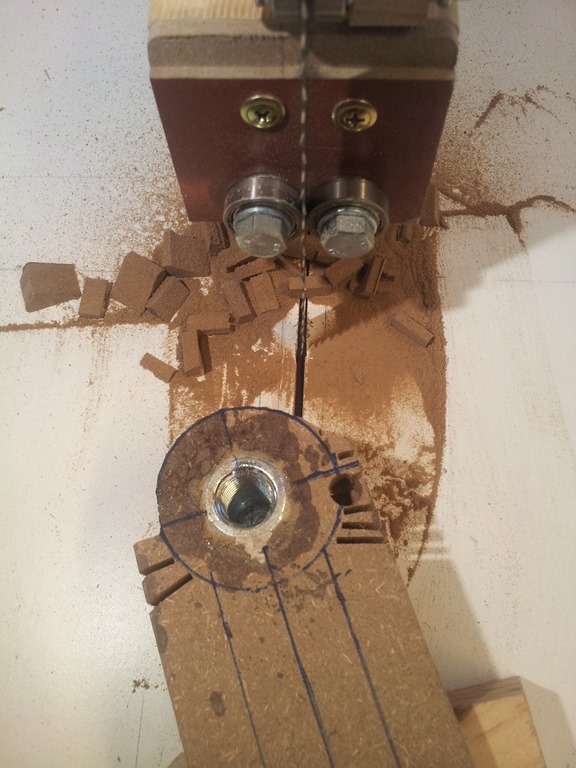

It’s good to be at that stage where the saw is cutting it’s own parts, and at this stage it’s working so well. That’s a very good result for a aggressive 13mm / 4 TPI blade designed mainly for ripping.

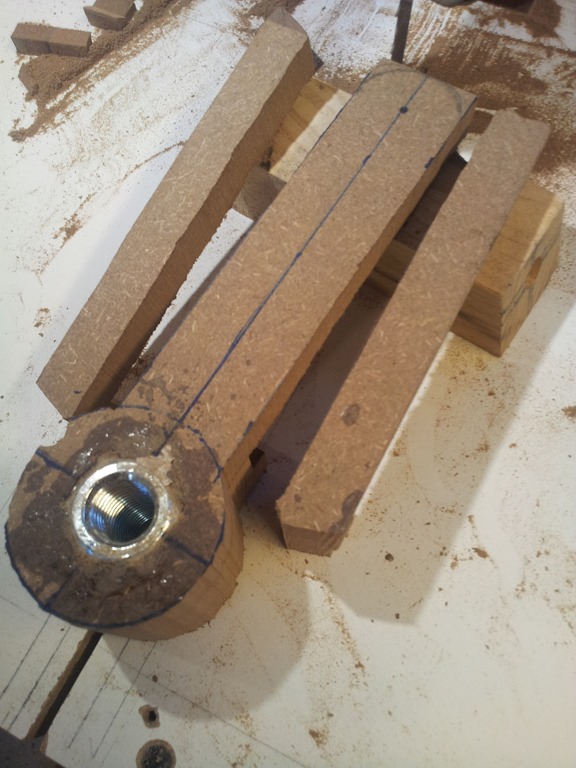

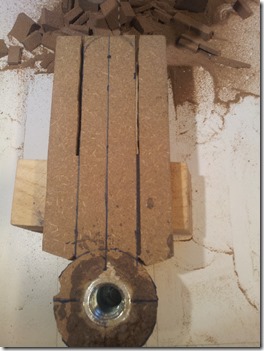

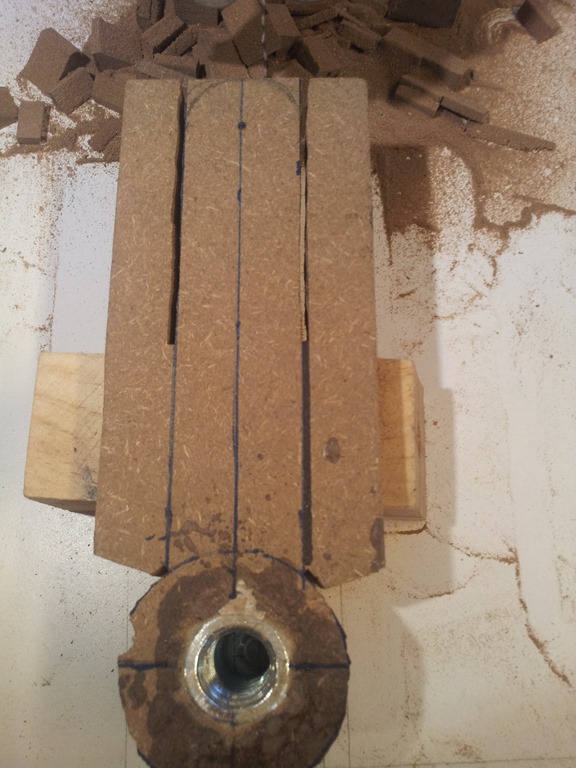

20180118_20073720180118_200916

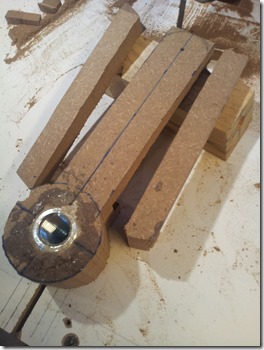

Spin it around to cut the handle sides.

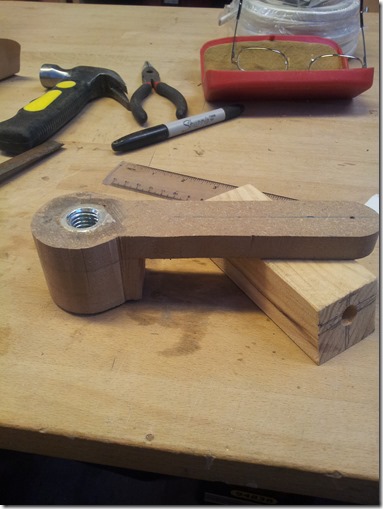

20180118_201704

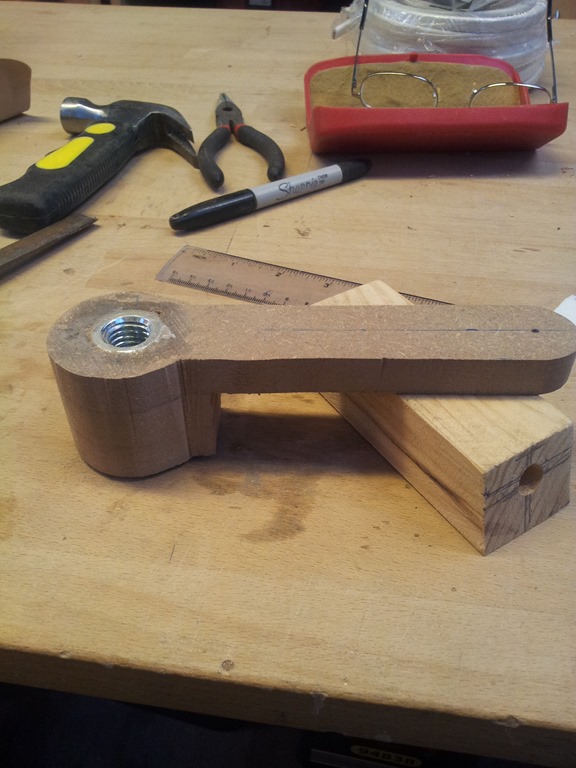

As before now over to the disc & belt sander.

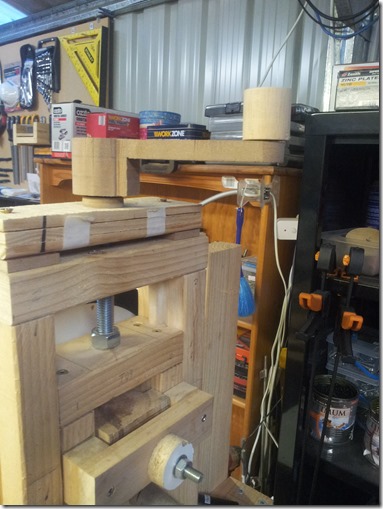

20180118_203959

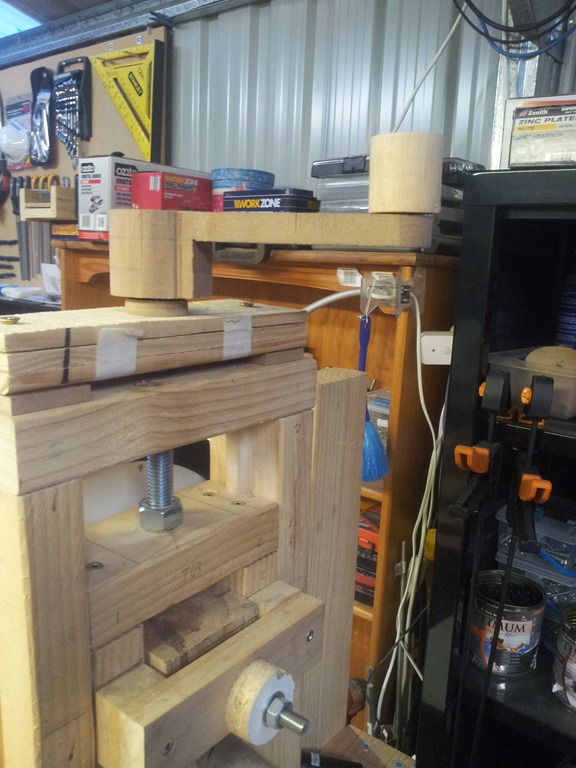

For the knob cut a bit of a length of (big) 25mm dowel.
So it turns easily made a ‘washer’ from a offcut of laminate flooring.

Next up around the back is to make a star knob for the blade tracking adjustment rod.
