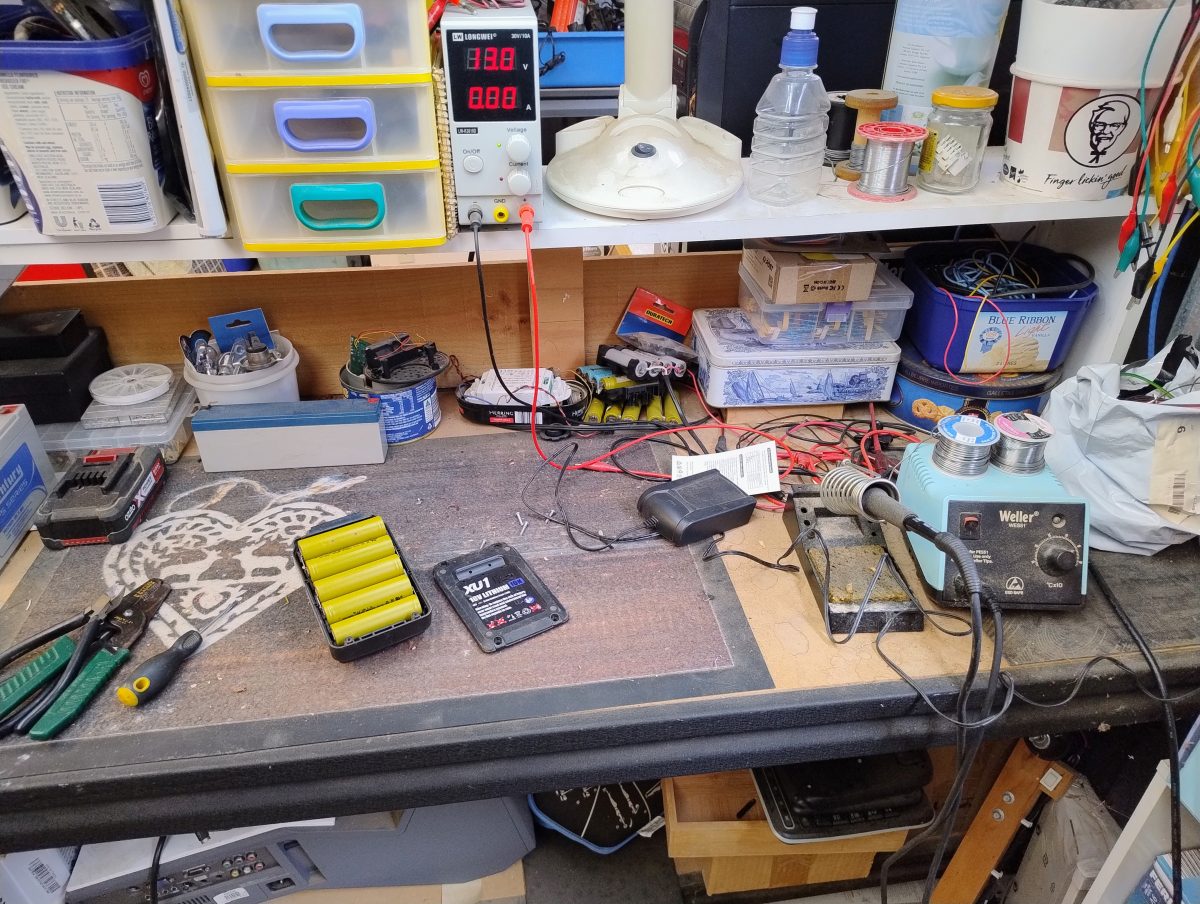

Replacing all the Bunnings XU1 cordless garden tools with Ryobi and happy to say they will be passed onto a family member and after 9 years (with my care) they are still in good working condition. There are 4 batteries, two are good and the other two need repair which is what we are doing this afternoon.

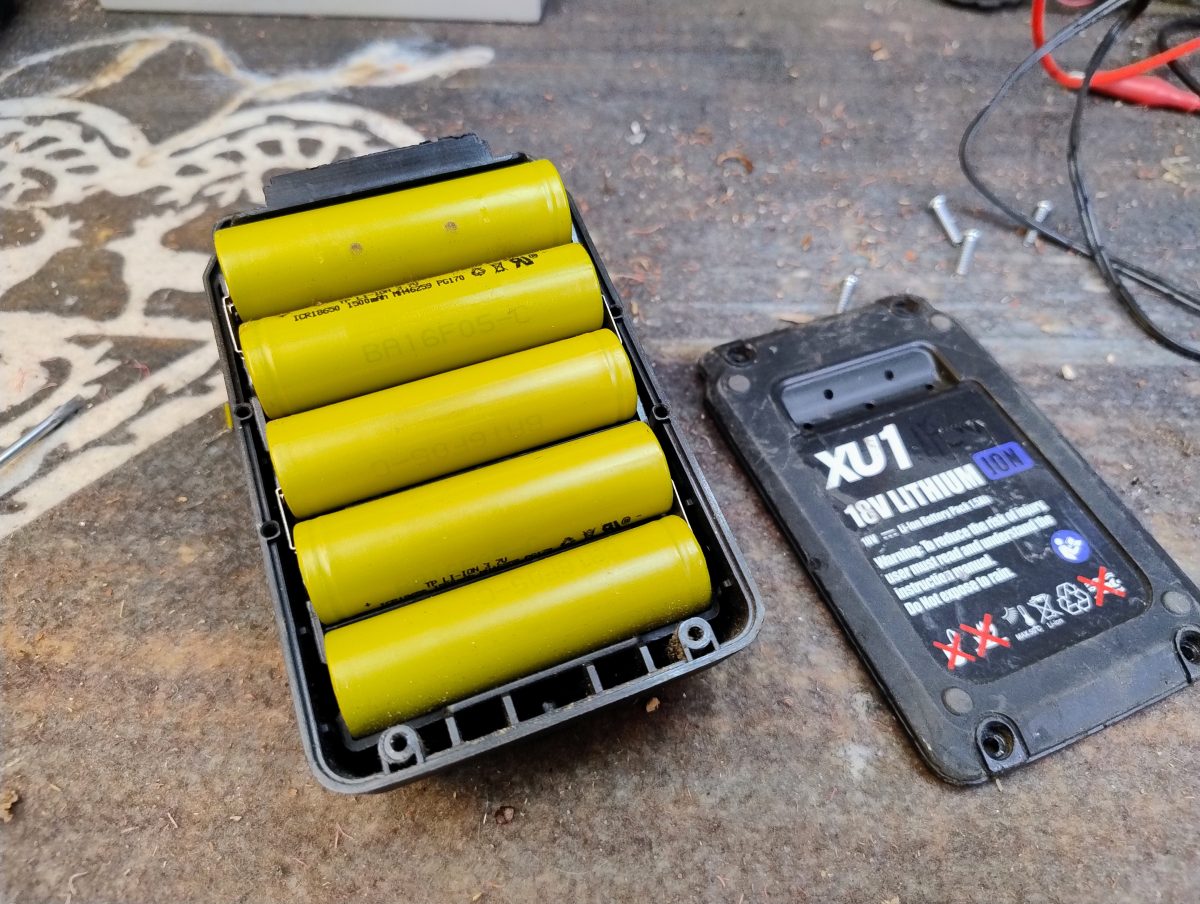

18V battery packs use 5 x 18650 @ 3.6V each (5 x 3.6 = 18).

I measured all the cells and the first one on the left reads 3.1 volts so we will replace that one.

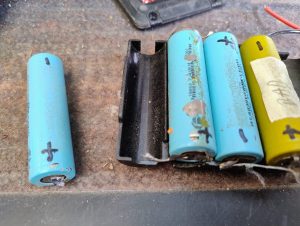

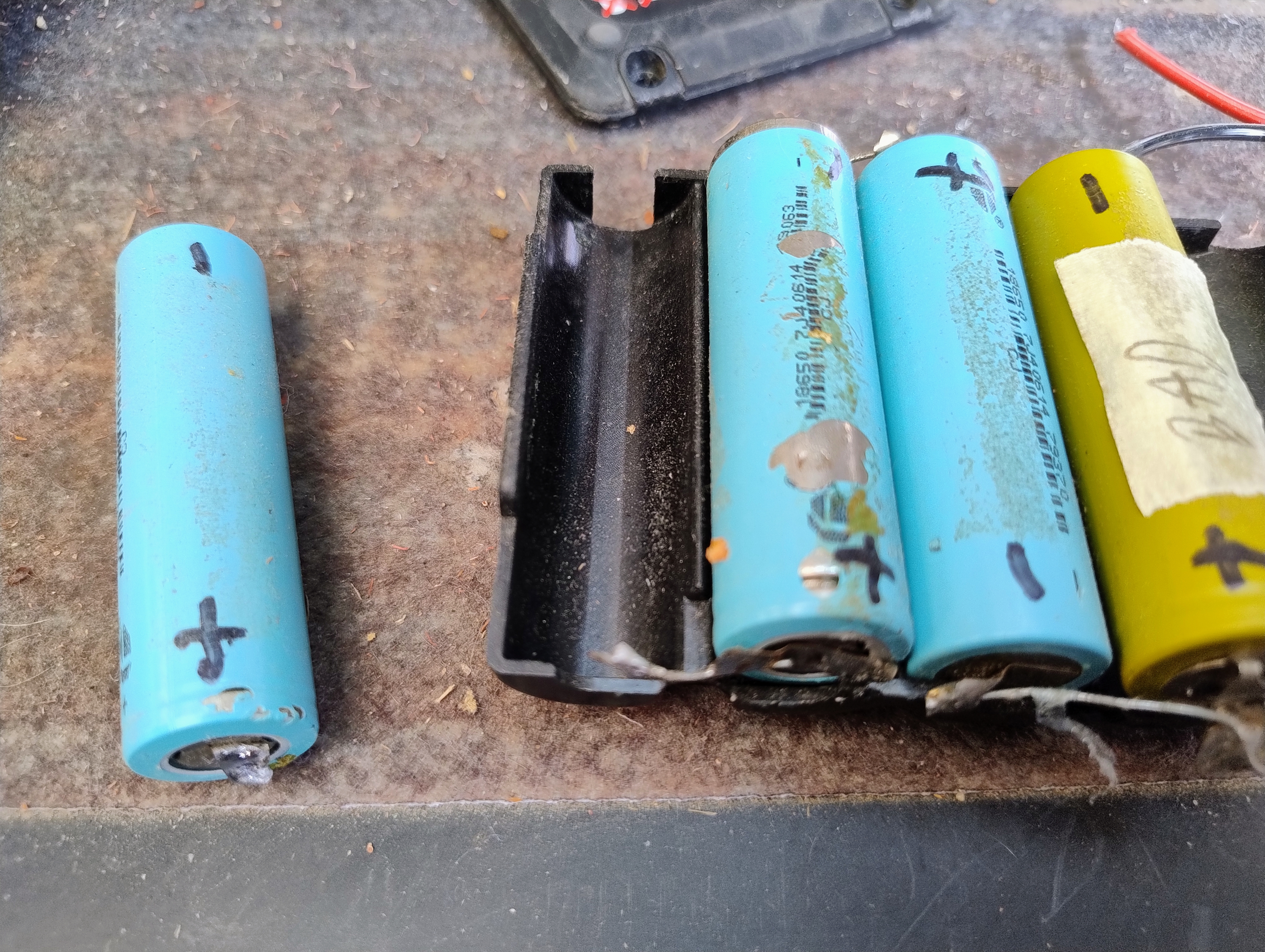

Went through my box of used spares and soon found a good replacement.

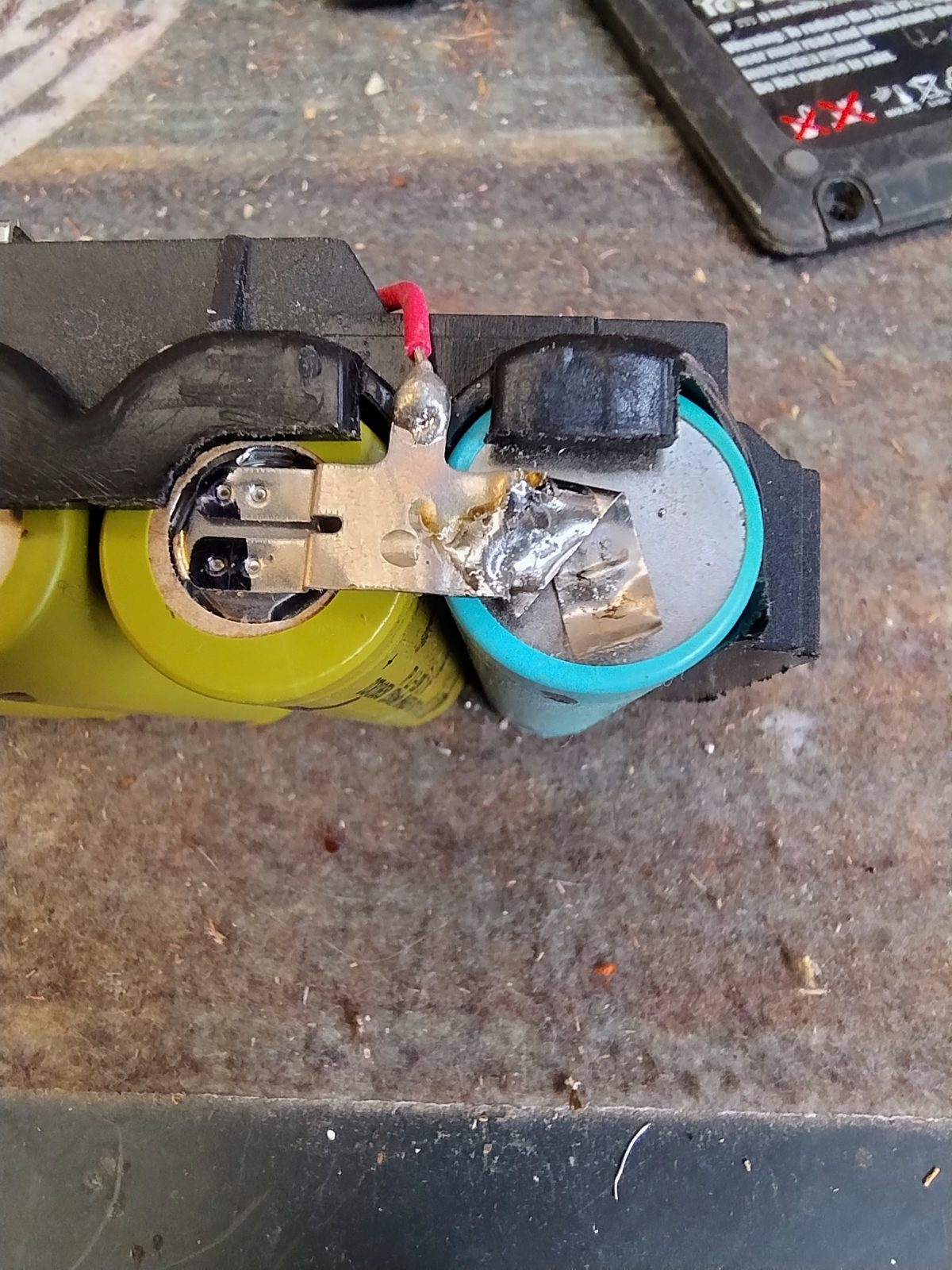

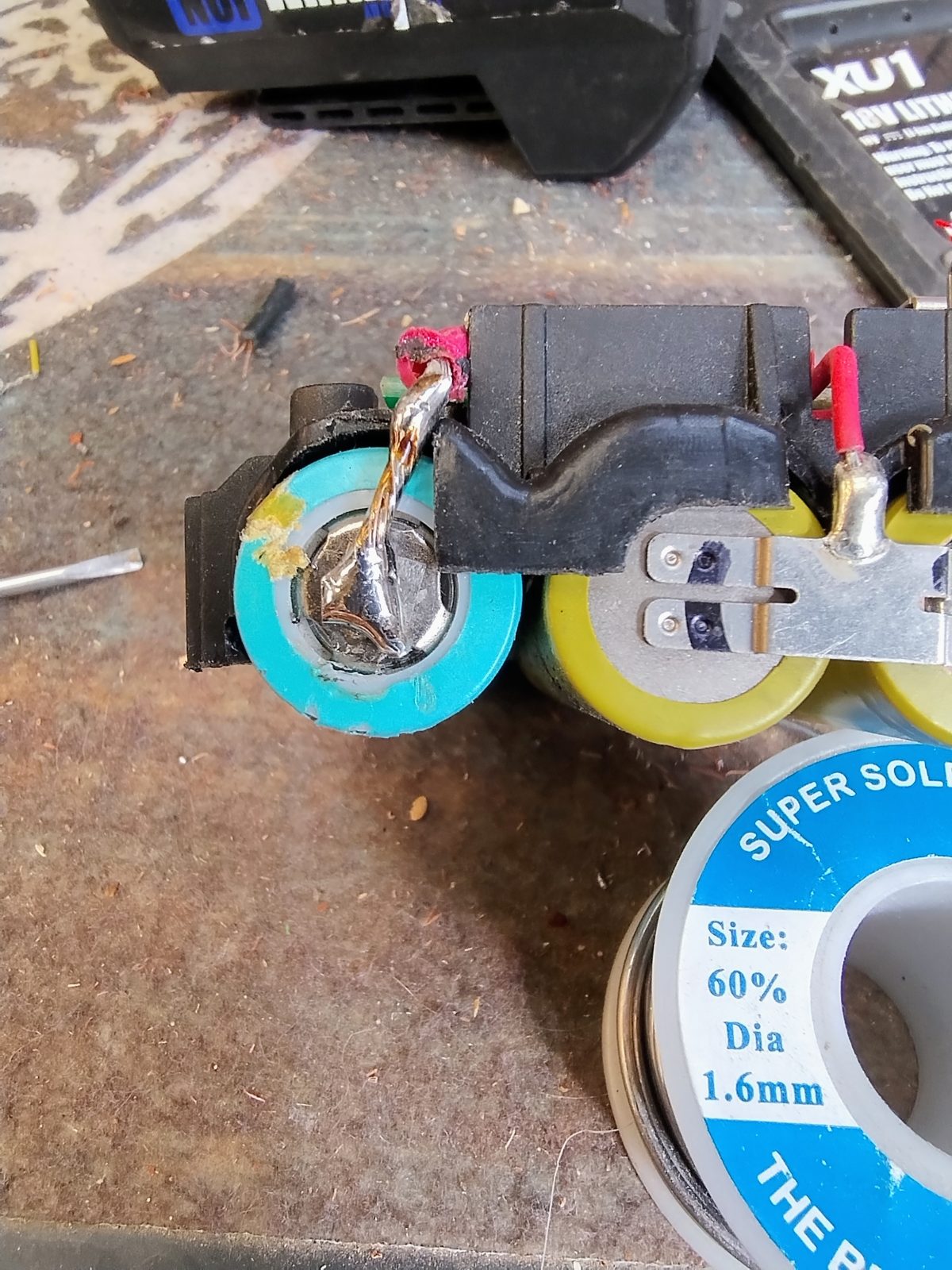

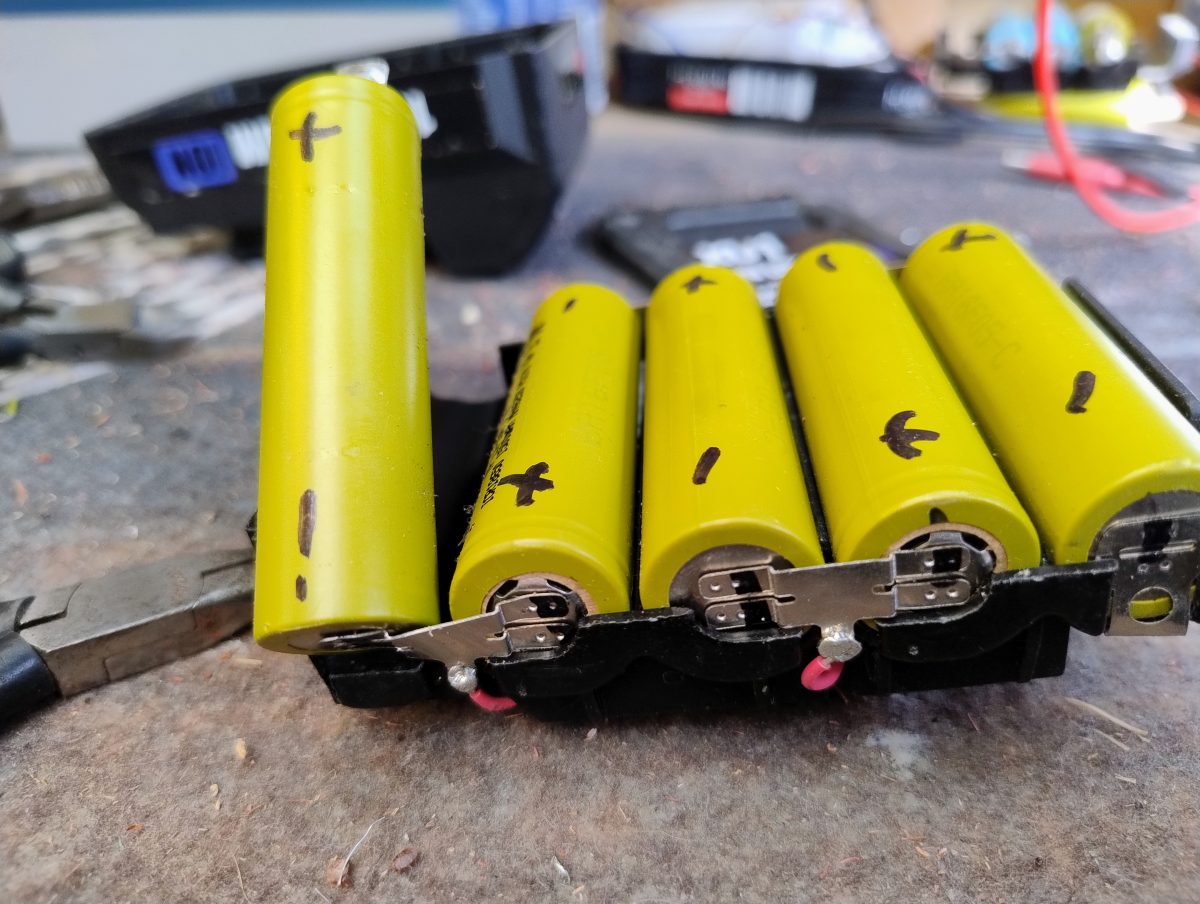

Removing the faulty cell.

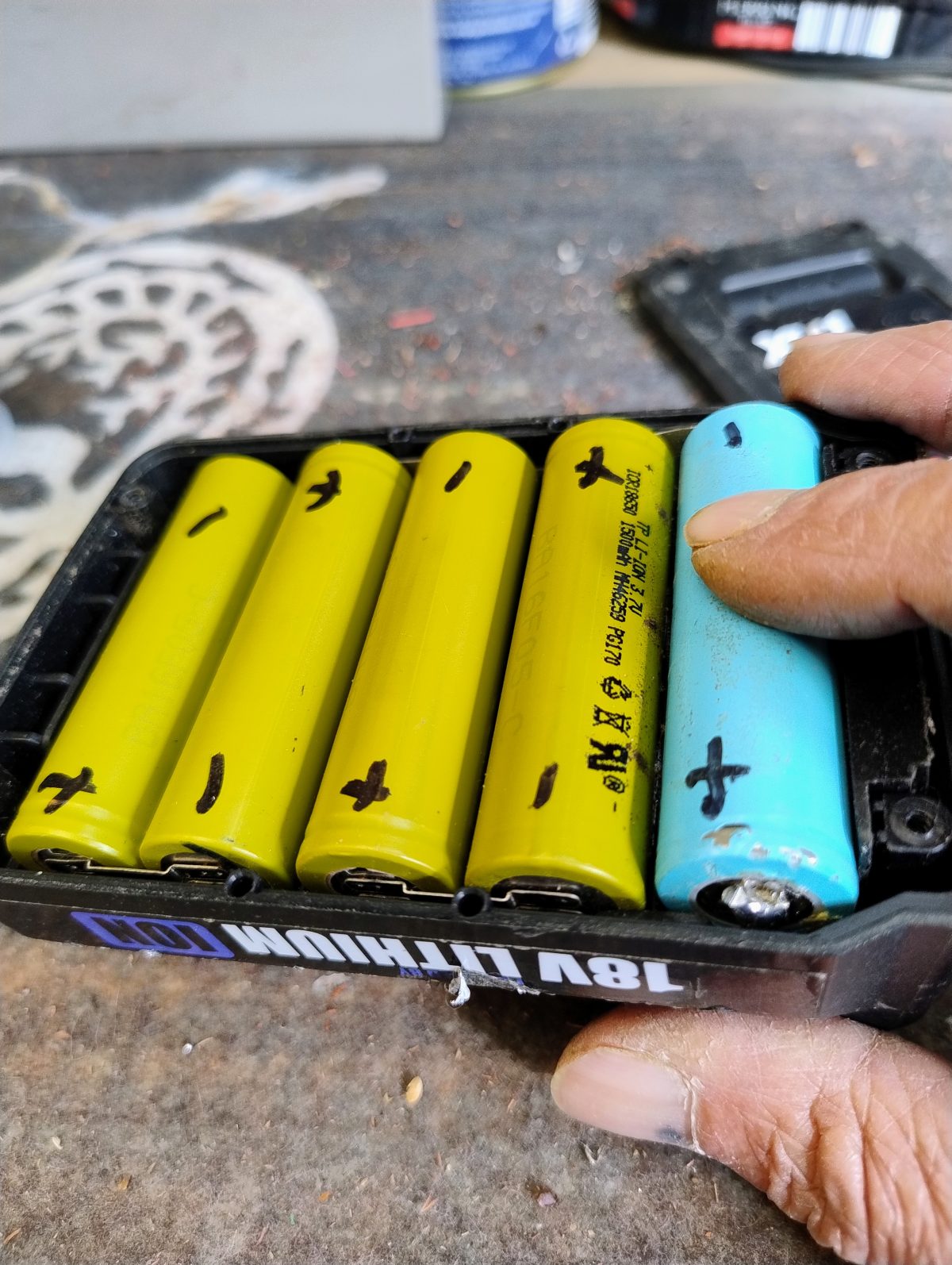

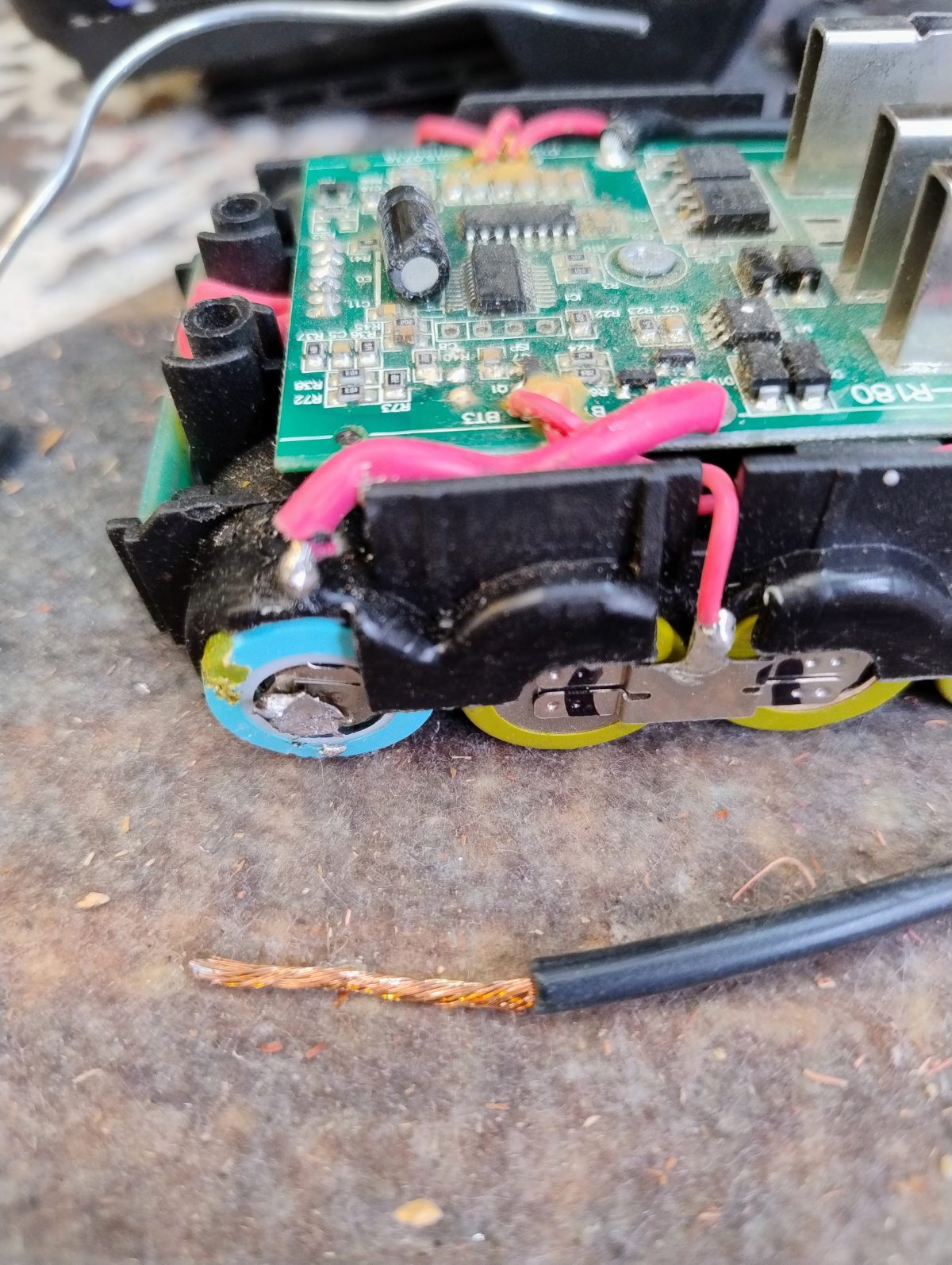

With that done better check that it still fits in the case.

All OK so we can replace the bottom cover and check it out – fingers crossed.

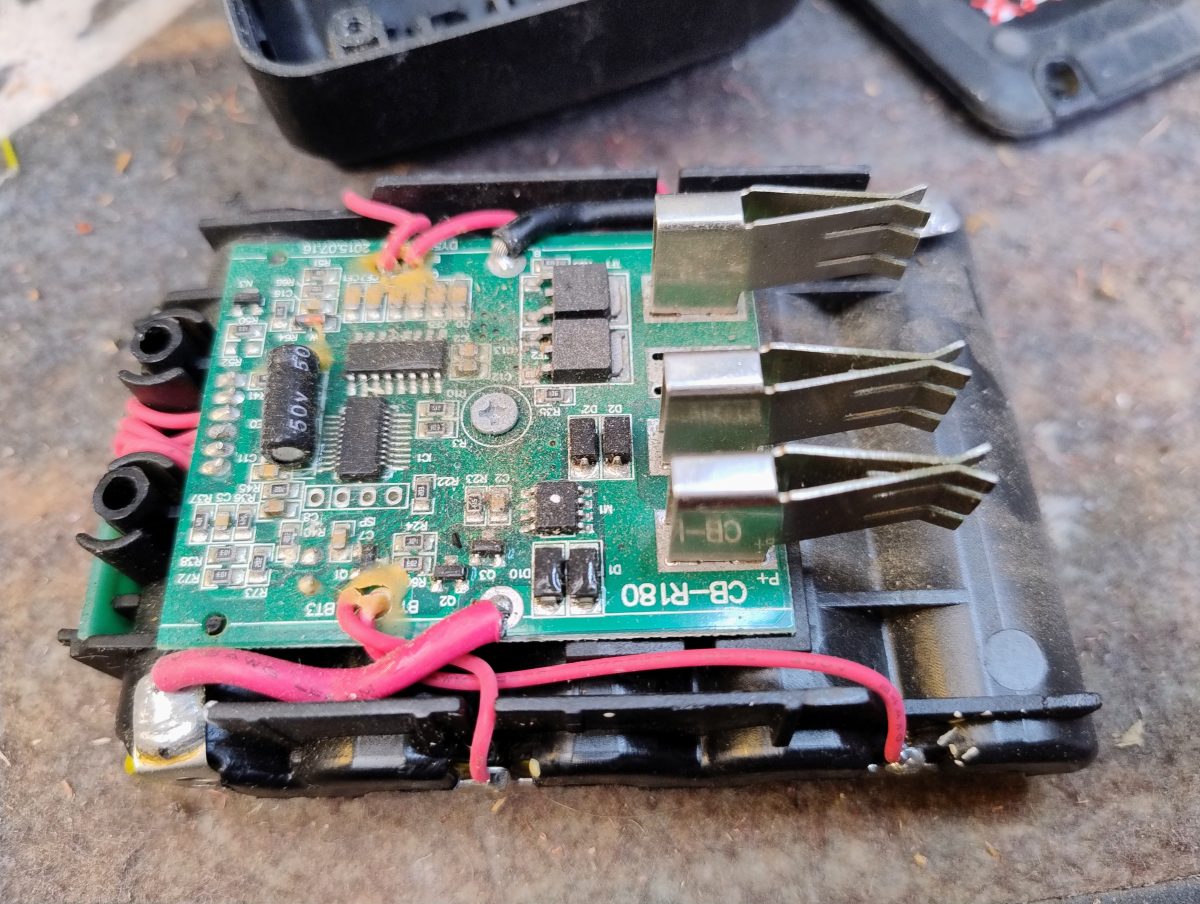

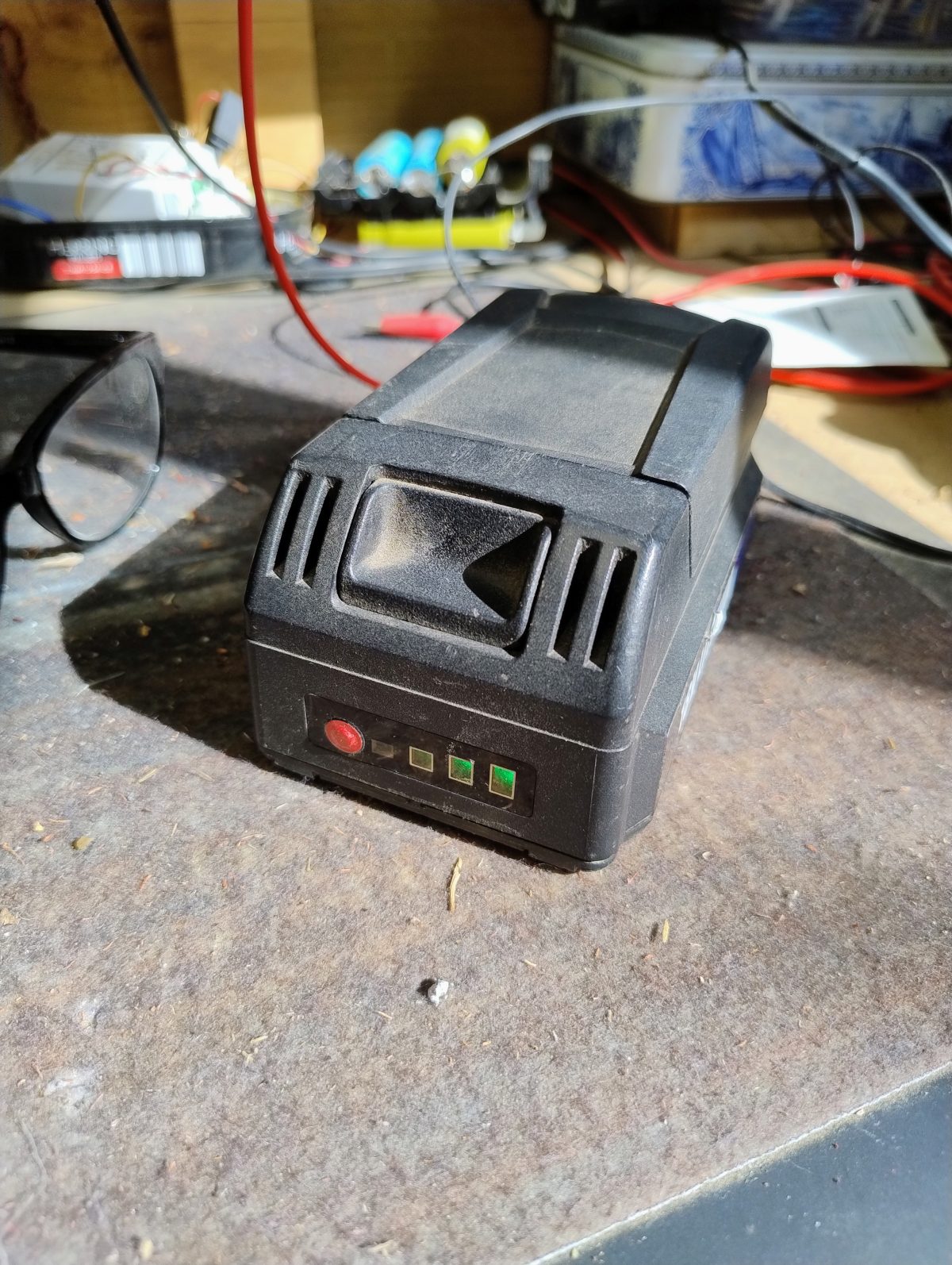

That looks very promising, the controller which individually monitors all the cells has determined the other four have good charge and will focus on charging the replacement cell.

I’ll be back with a update…
