Suitable for use in the chook run where there is 240V power for the 12V power supply or powered from 12V SLA battery for controlled feed sessions the yard or further out within wi-fi range. The feeder is controlled with the Smart Life app in conjunction with Amazon Alexa. For example to remotely open the feeder ‘Alexa… Open Chicken Feeder’. You can also press the button on the feeder itself to manually open & close.

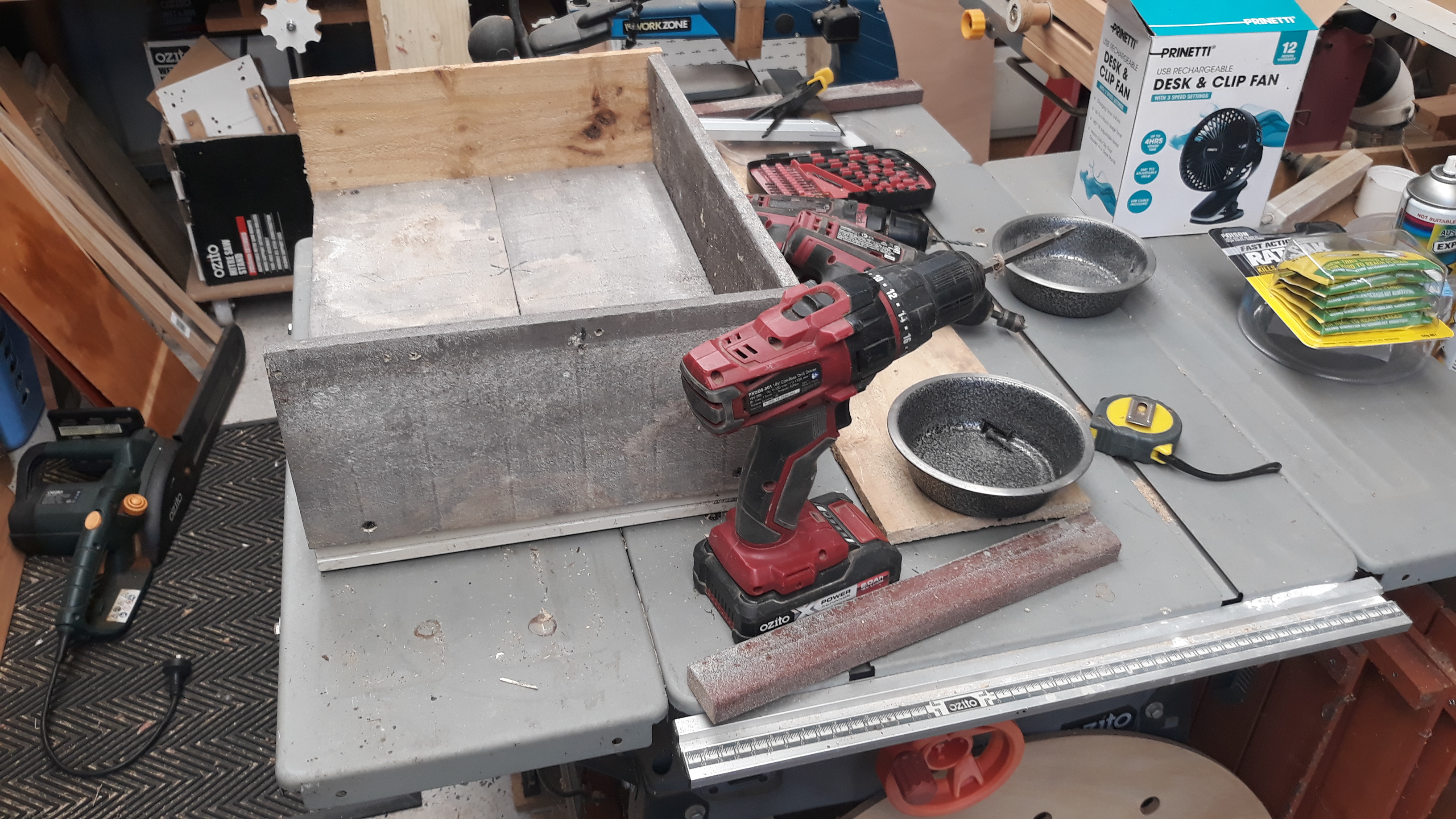

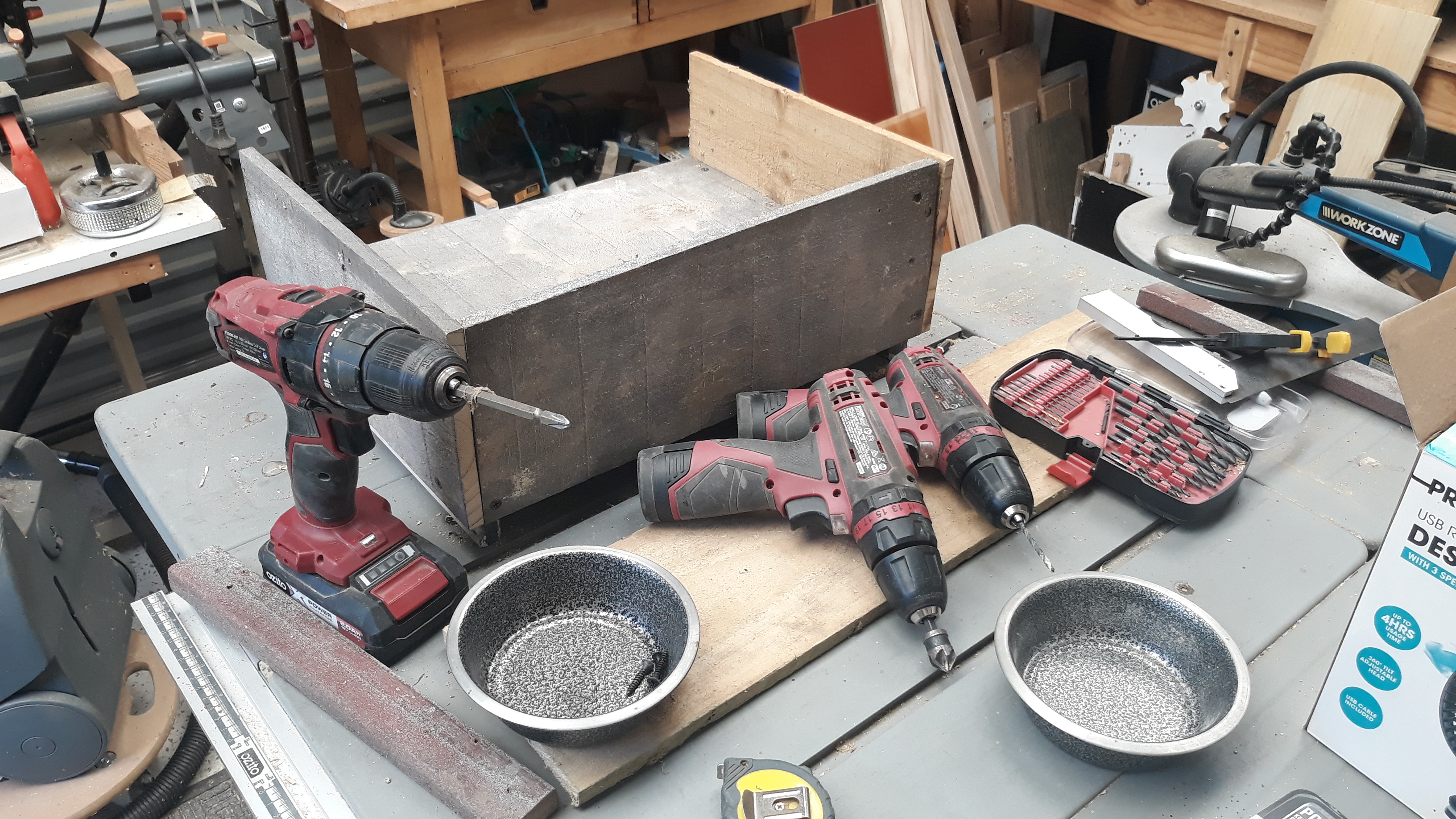

Repurposing: I am using timber from a previous project.

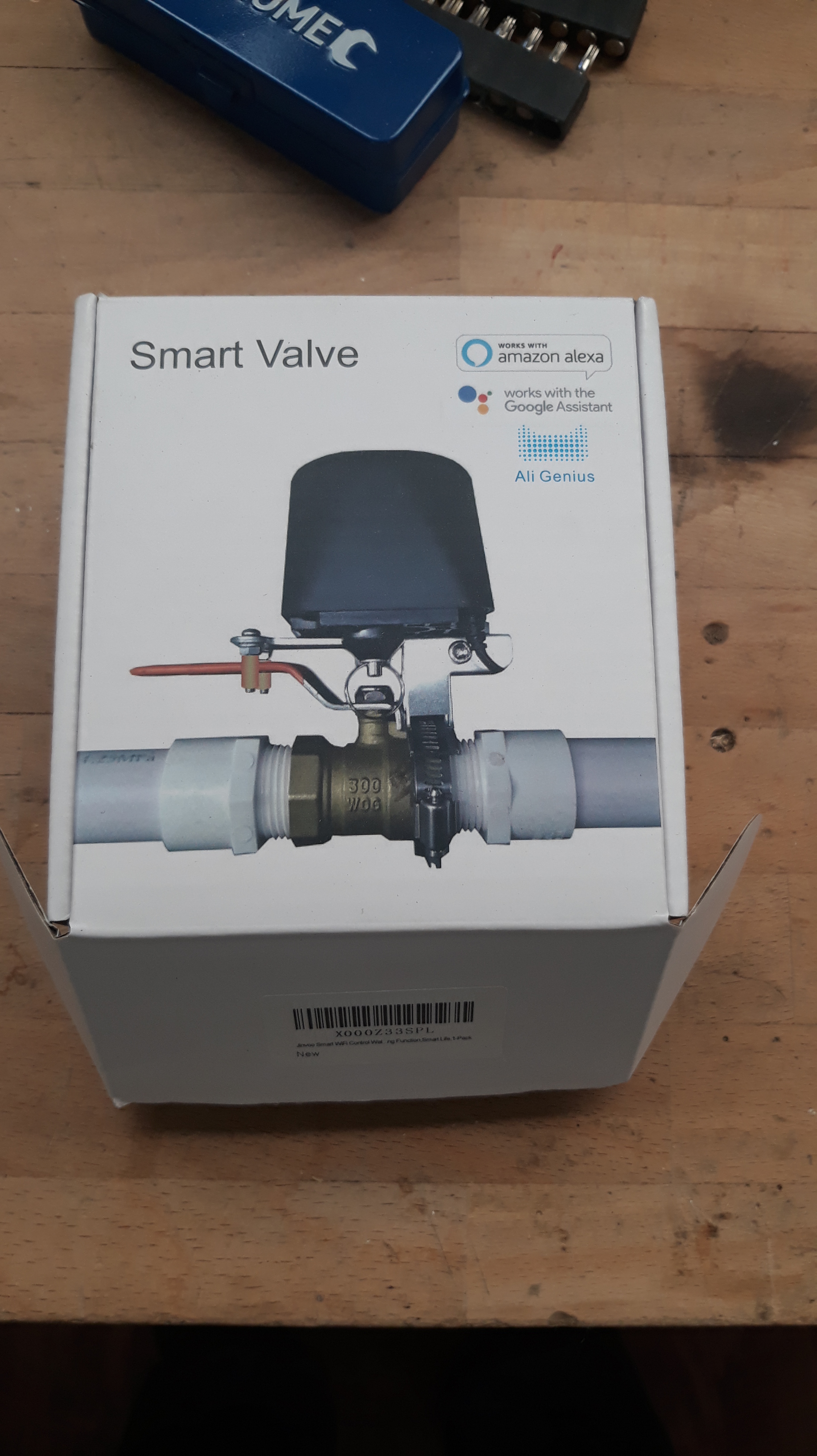

The main component is a Wi-Fi Water Valve from Amazon.

I will refer to this as ‘Wi-Fi Servo Actuator’.

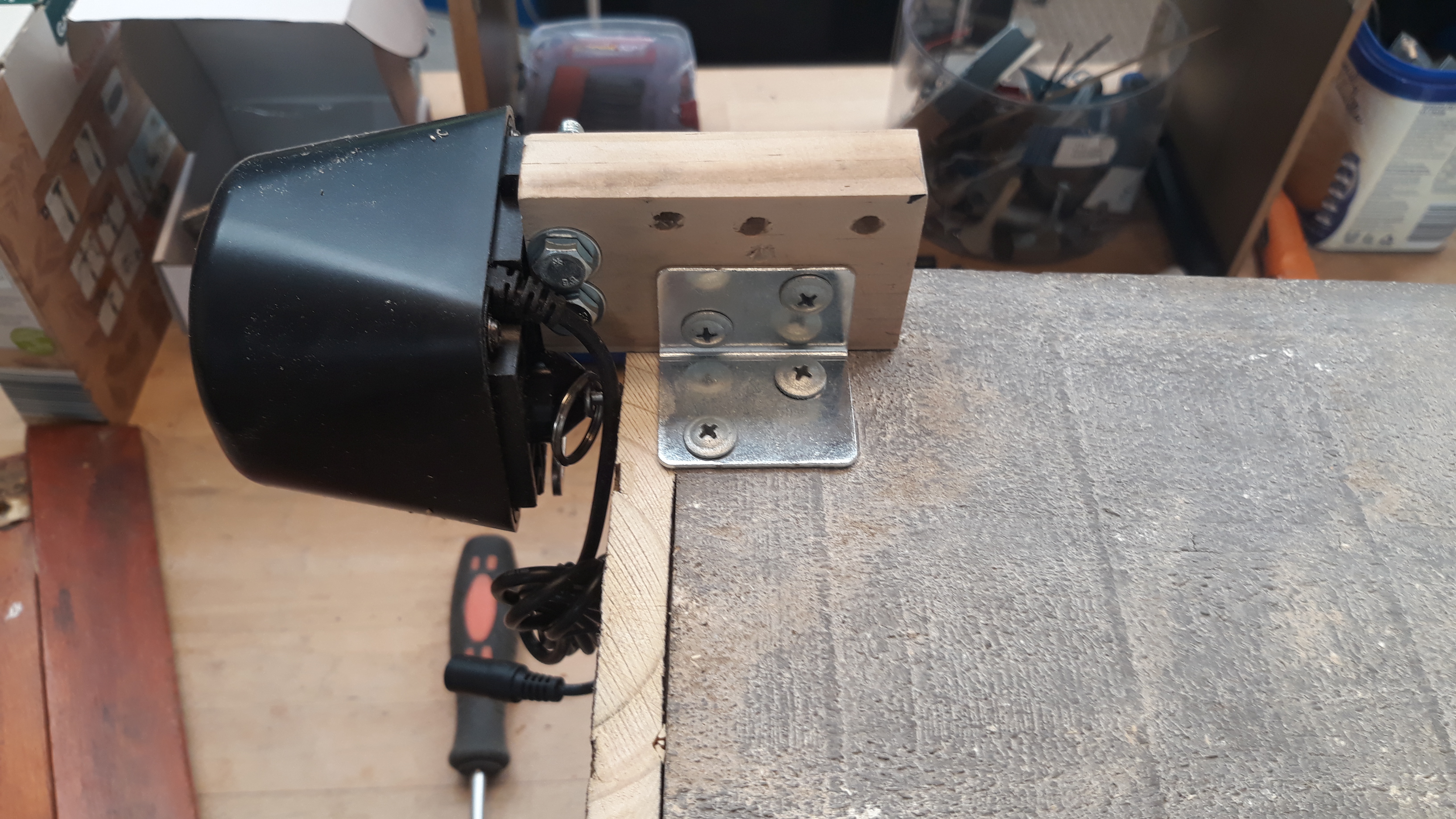

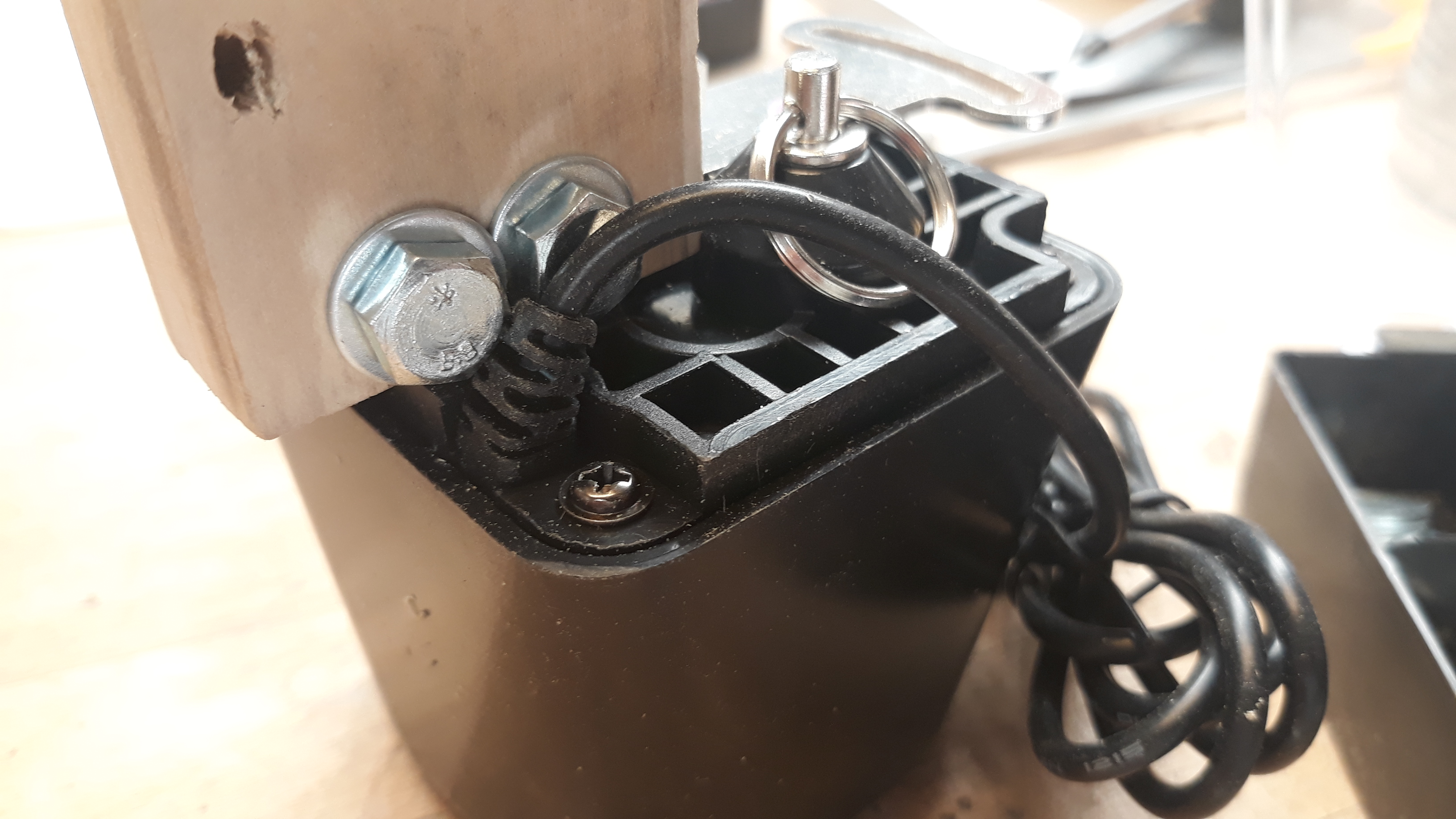

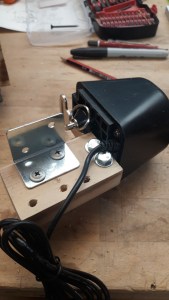

The valve is supplied with a bag of bits so it can be mounted on a water pipe. Leave all that in the box we are going to use a short piece of 42 x 18mm dressed pine for the valve mounting base.

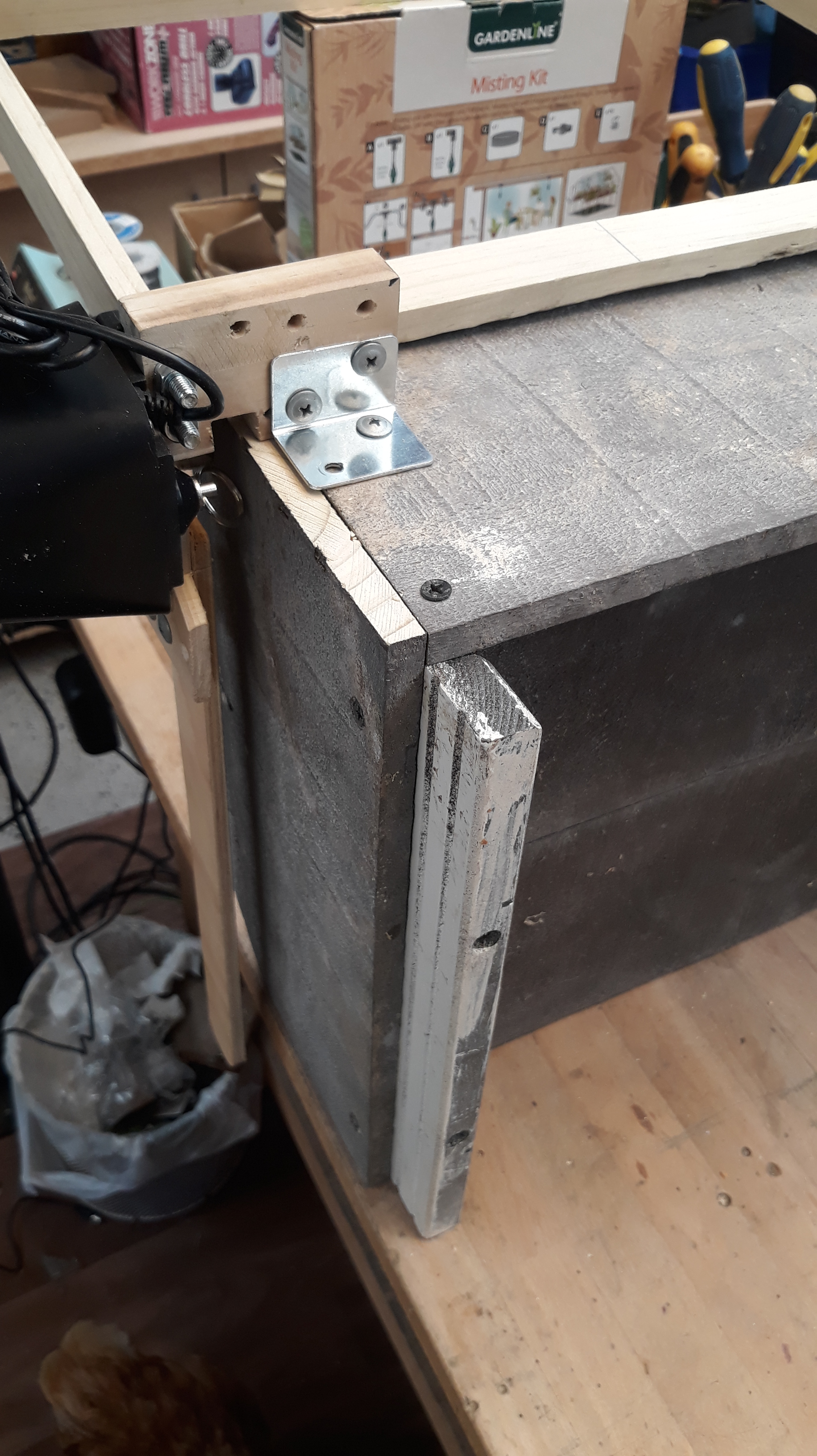

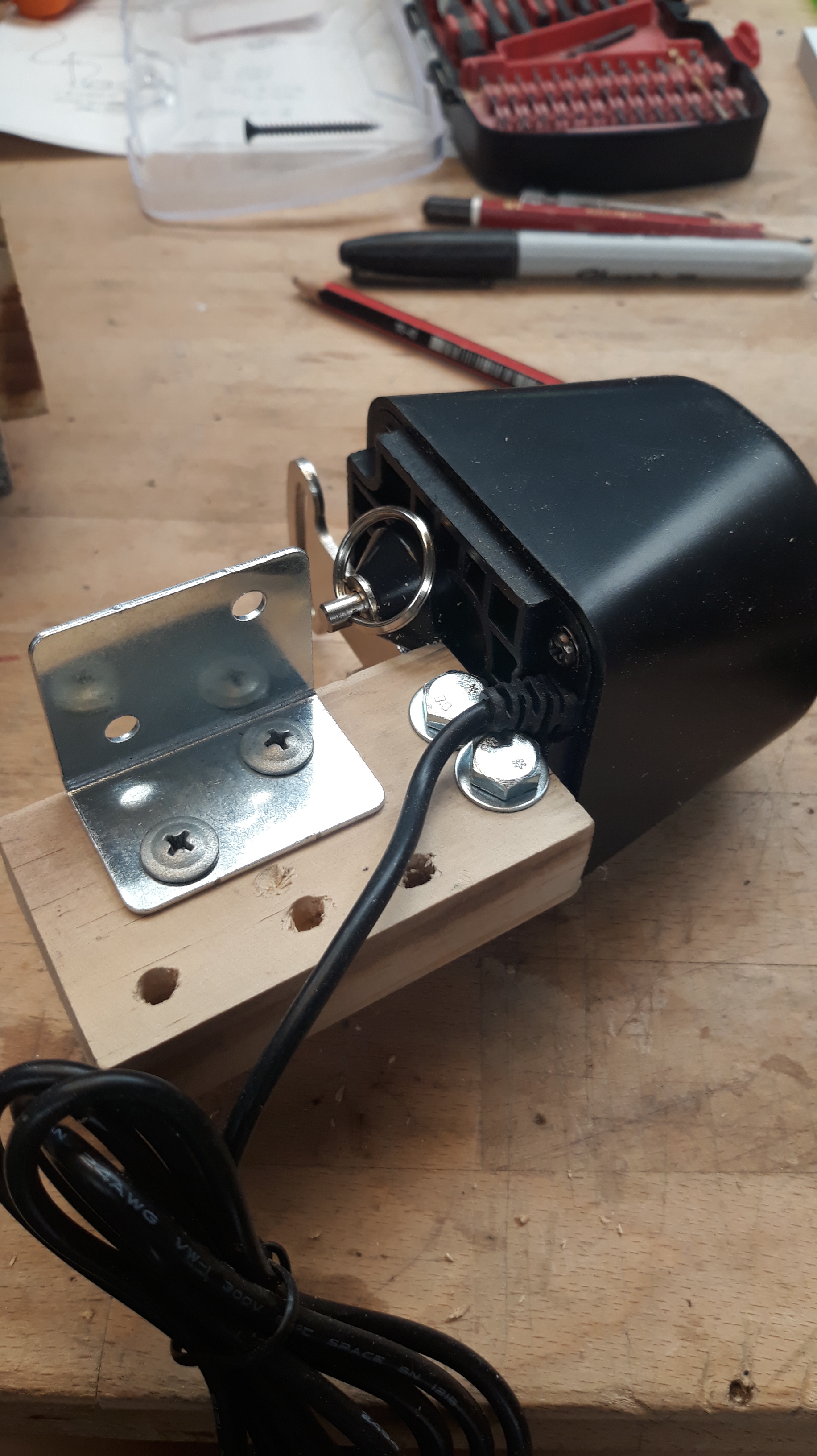

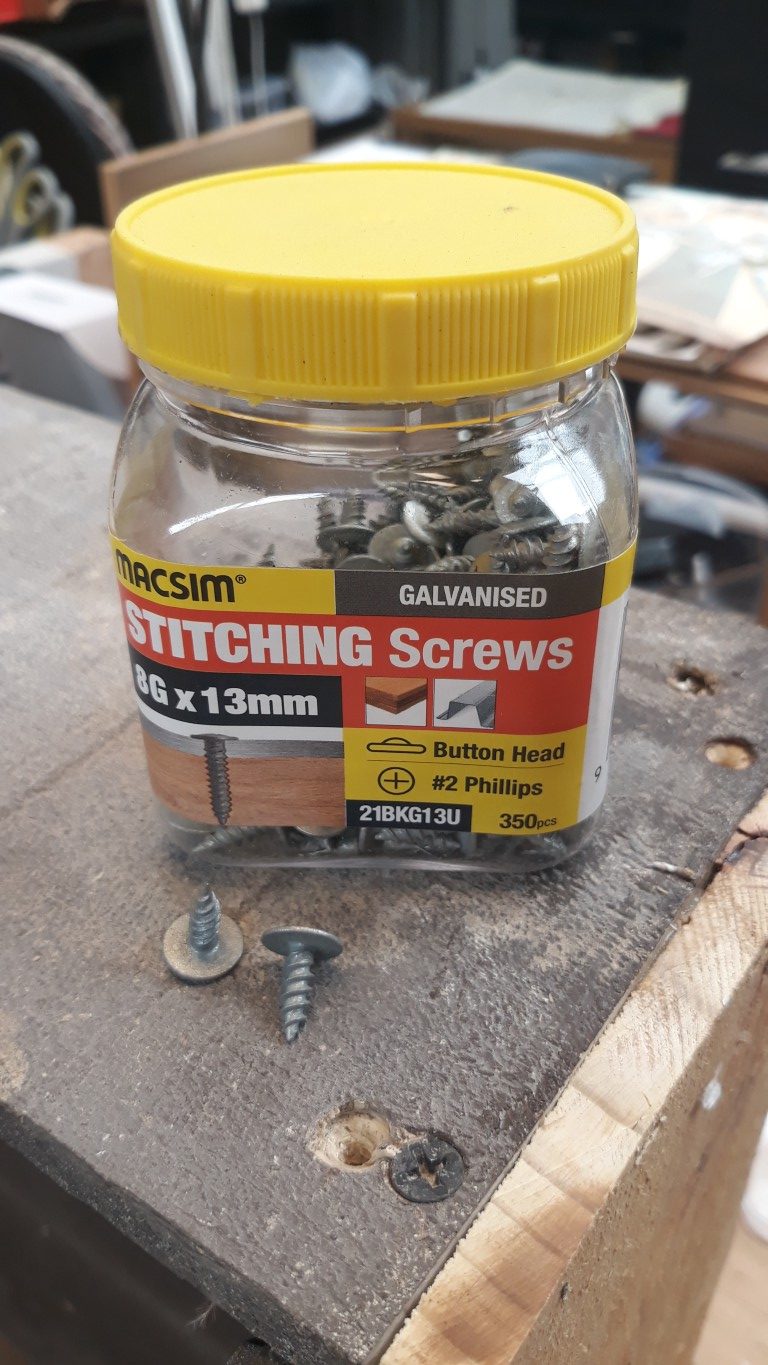

Small bracket to mount on the right back corner secured with stitching screws.

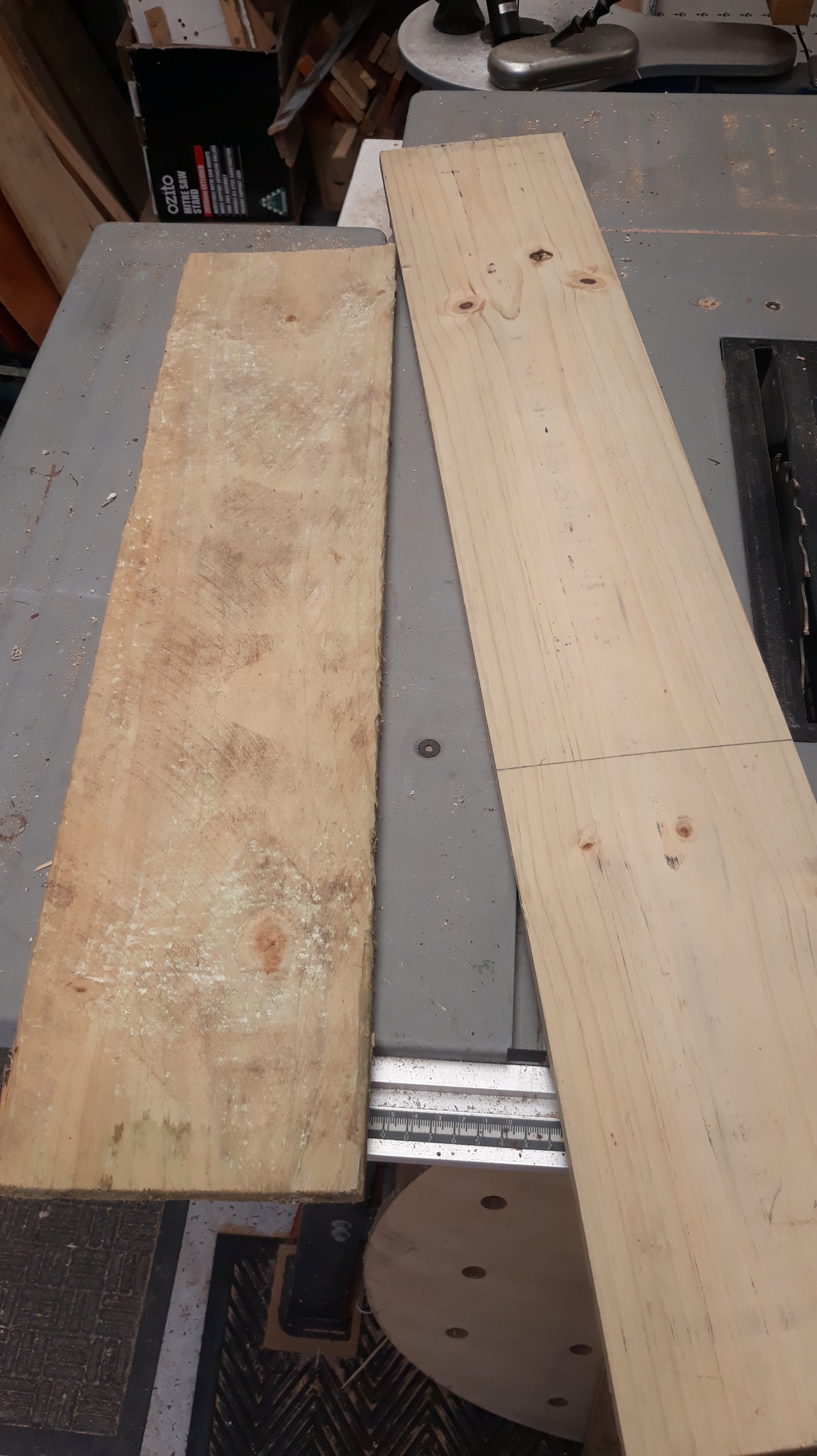

Now we need to make a cover that moves in a 90° arc. Timber is expensive so I use fence paling wherever I can. On the left is a raw paling and the right is my dressed paling.

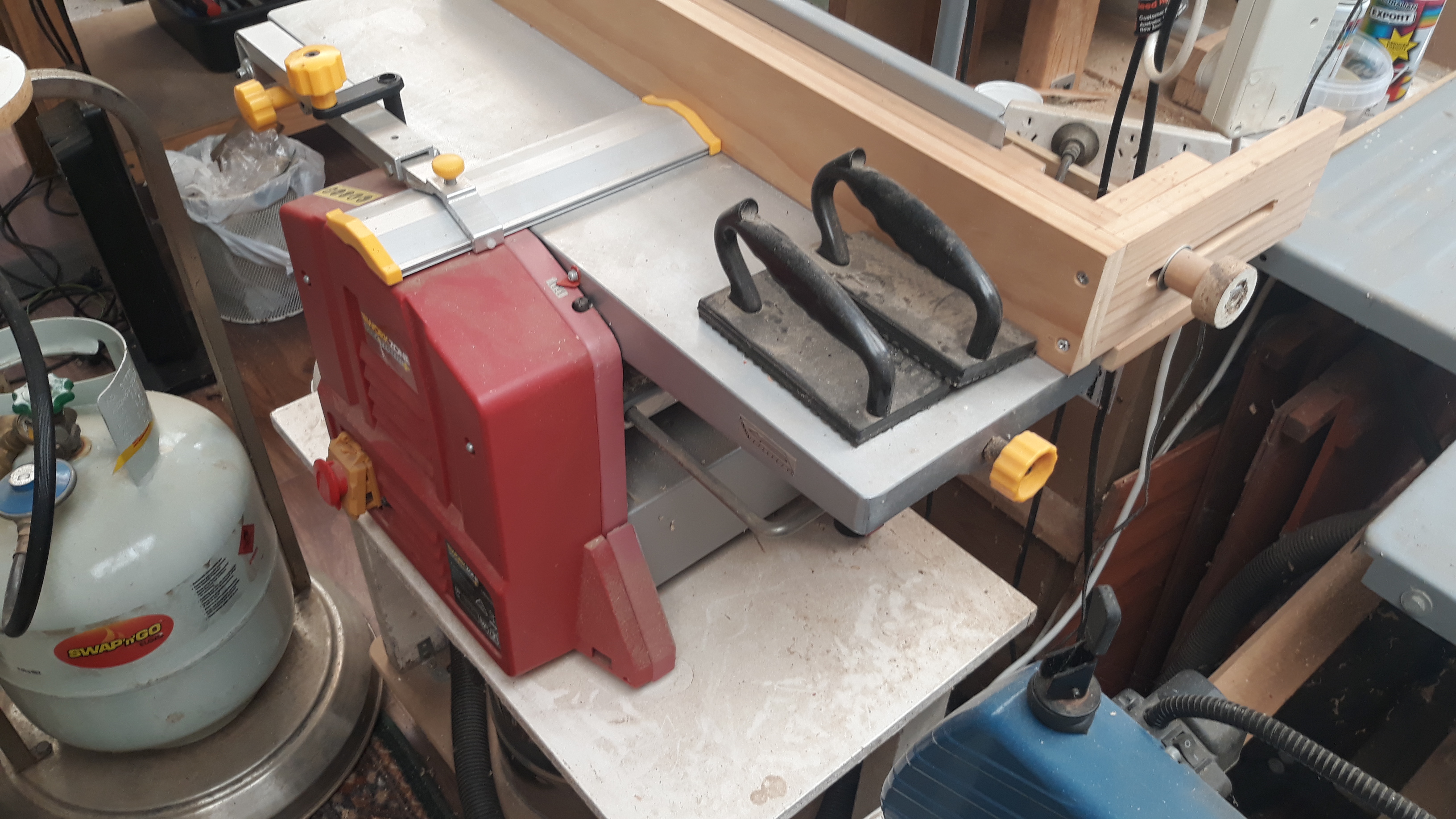

I select the best ones to run through the planer/jointer.

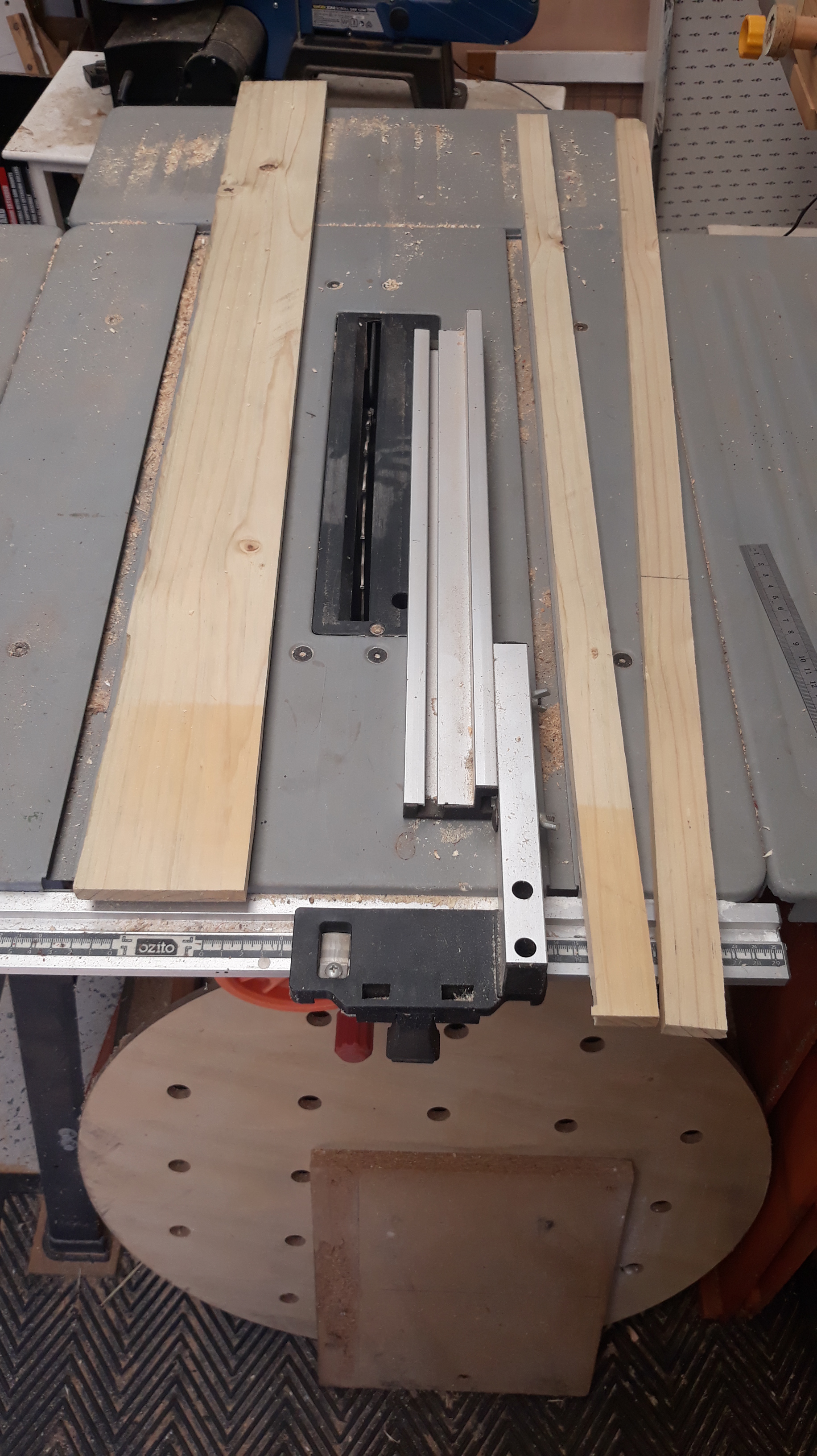

I ripped a couple 50mm wide now back to the workbench.

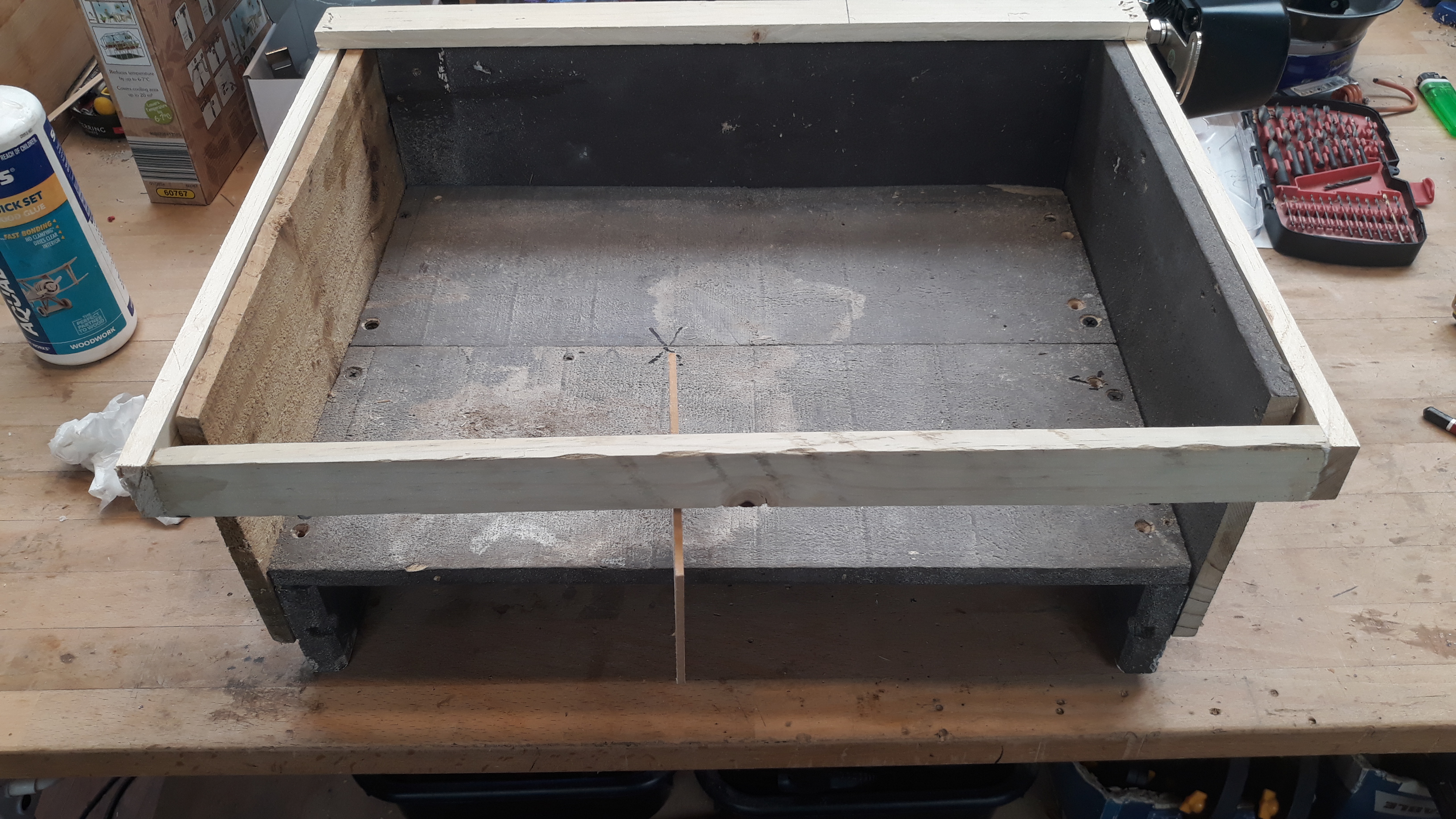

Thinking and fiddling a bit… this should work.

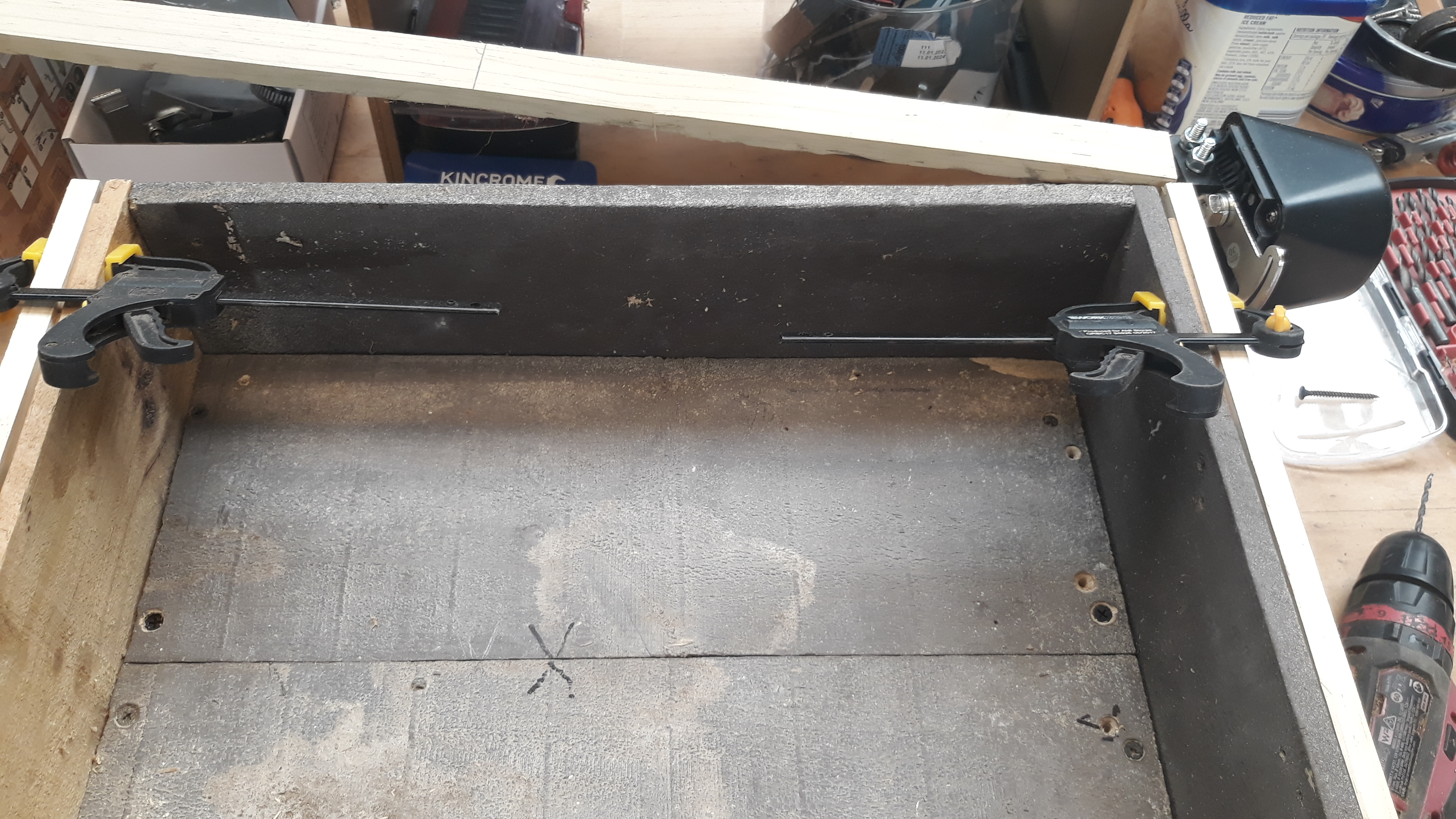

We need to ensure there is a gap between the sides and the cover so I’m using 3mm MDF scraps with mini clamps.

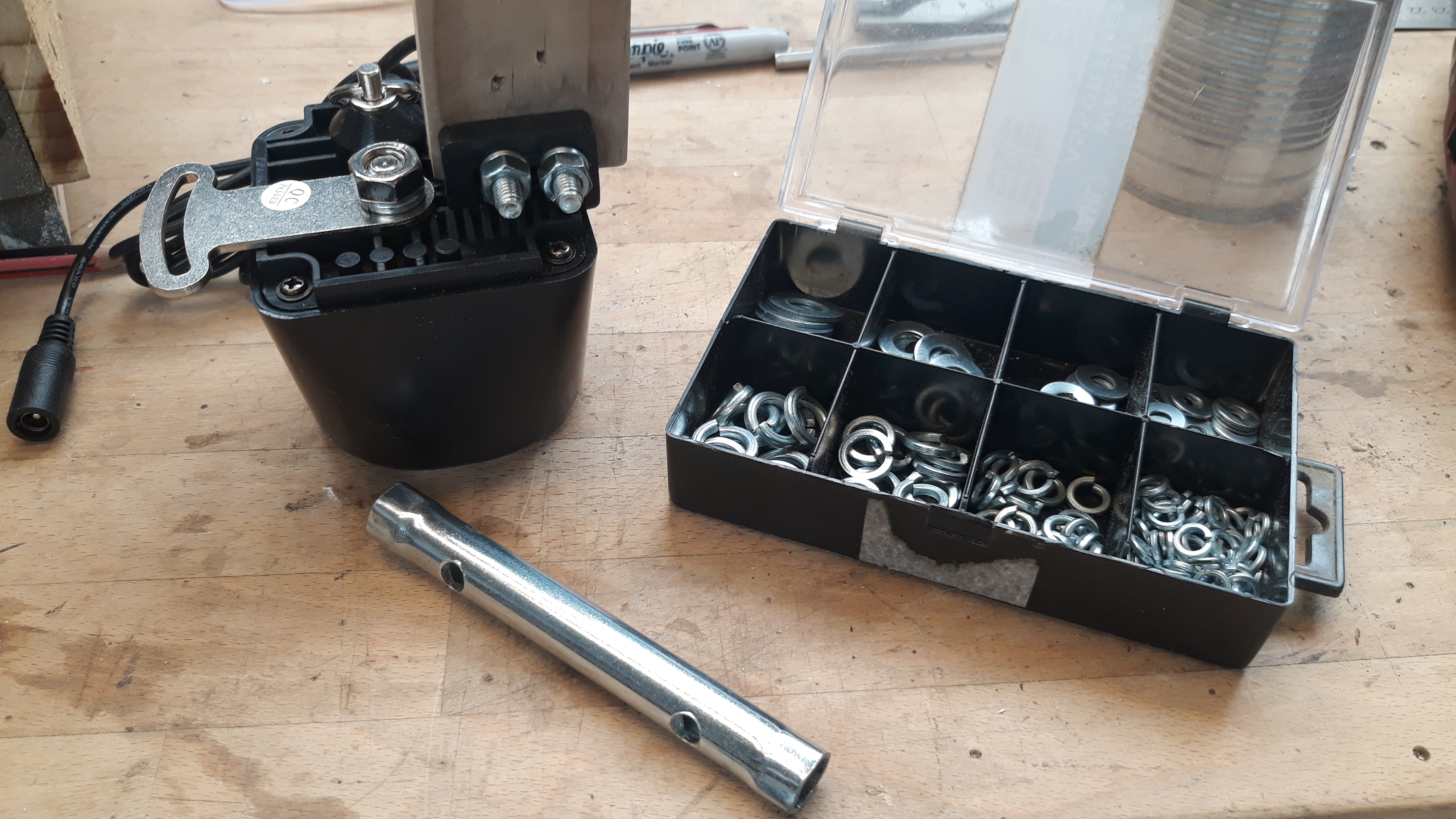

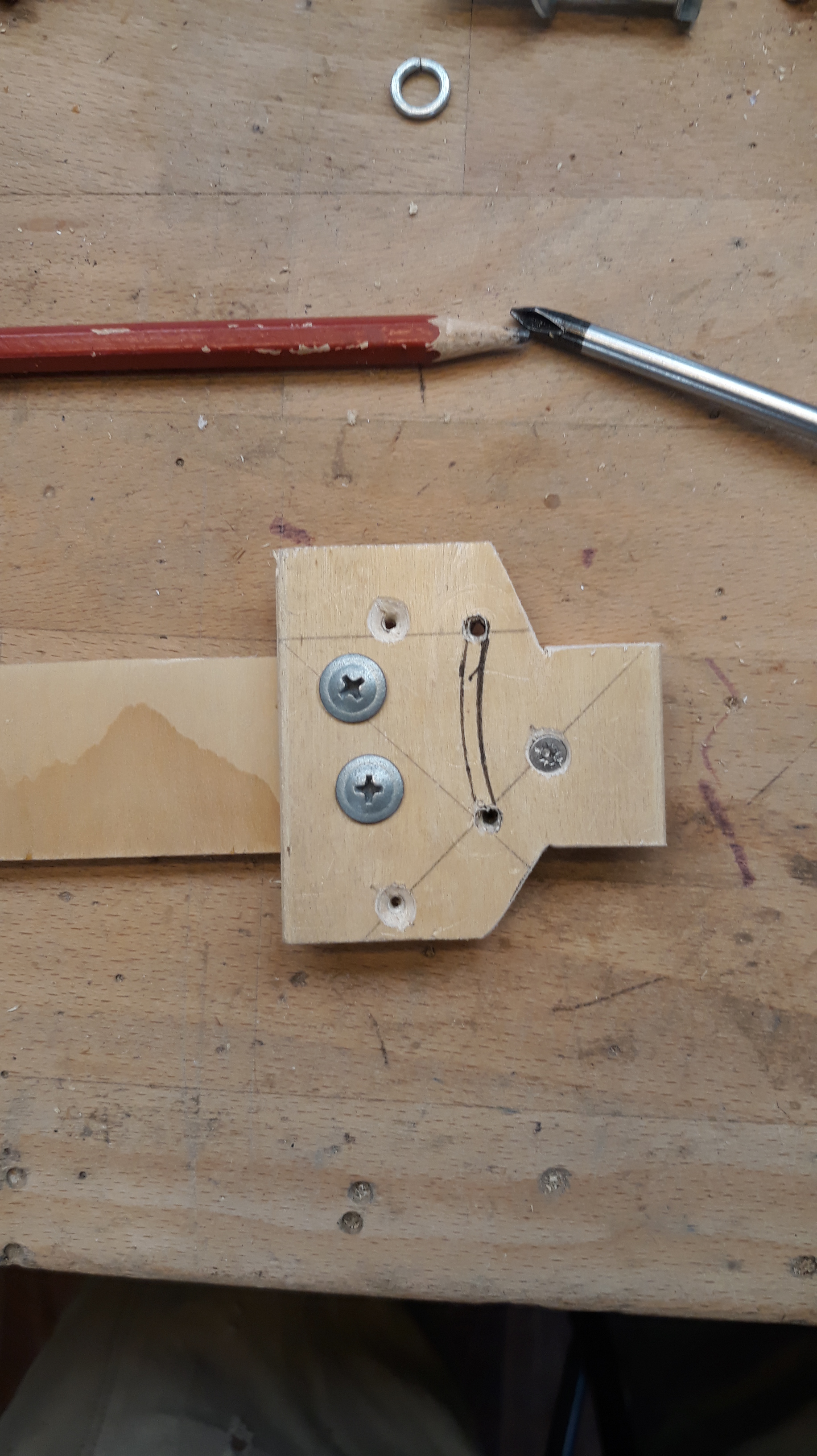

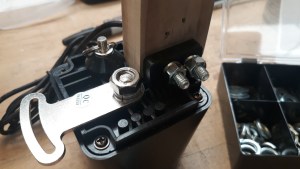

With that done we need to make a extender arm for the servo unit.

This extends the short servo motor arm.

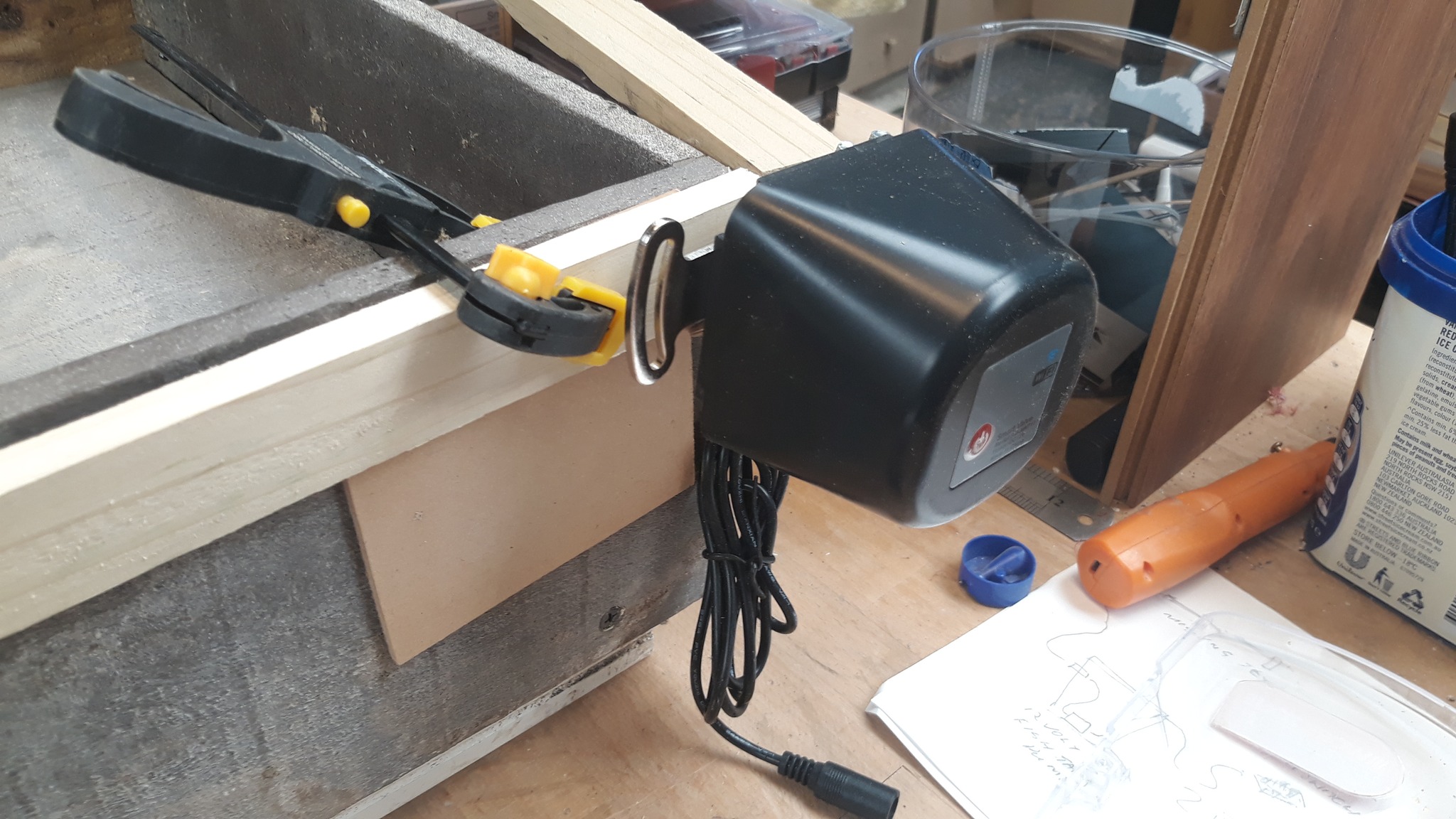

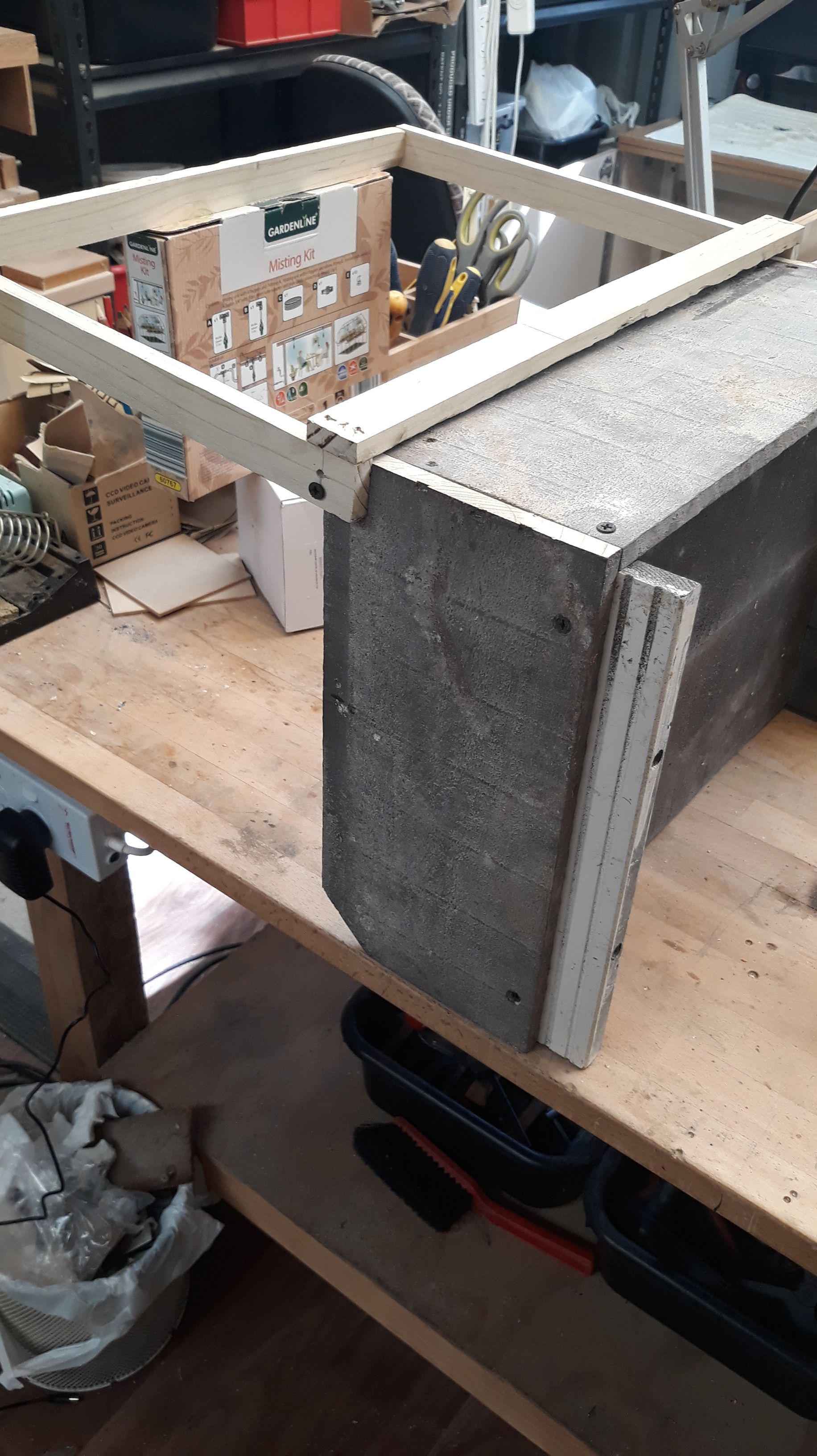

With the unit face down near the edge of the work bench and the cover frame propped up we can mount the servo unit.

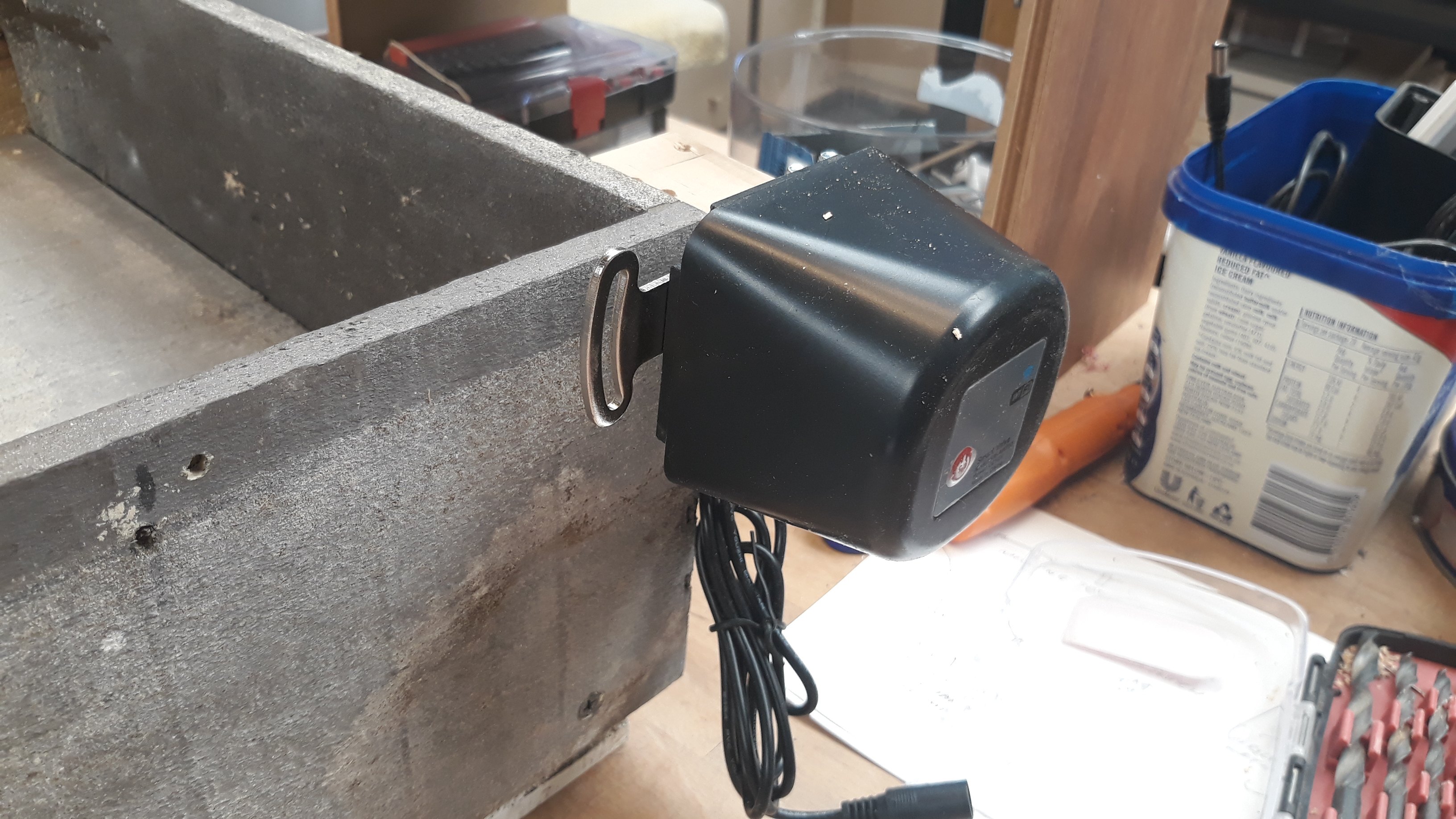

Mounting on the right back corner.

I’ll be back…
